High Speed Flat Cable Crimping Machine

  • Model:KS-T9011
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

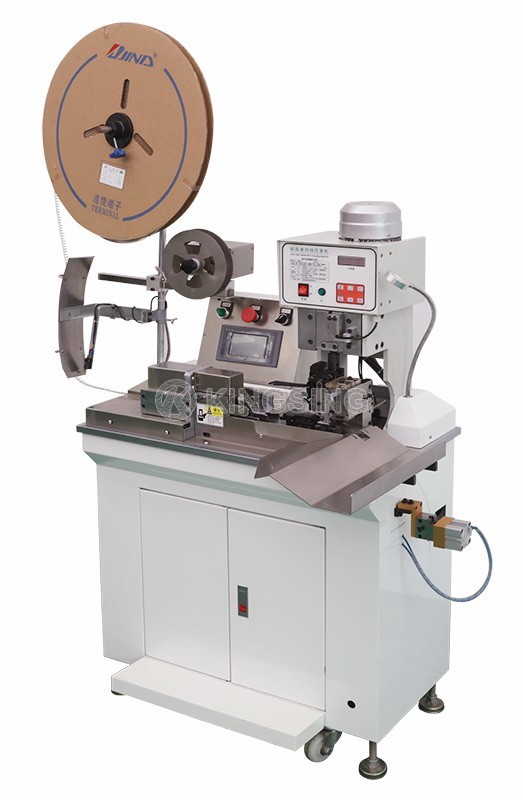

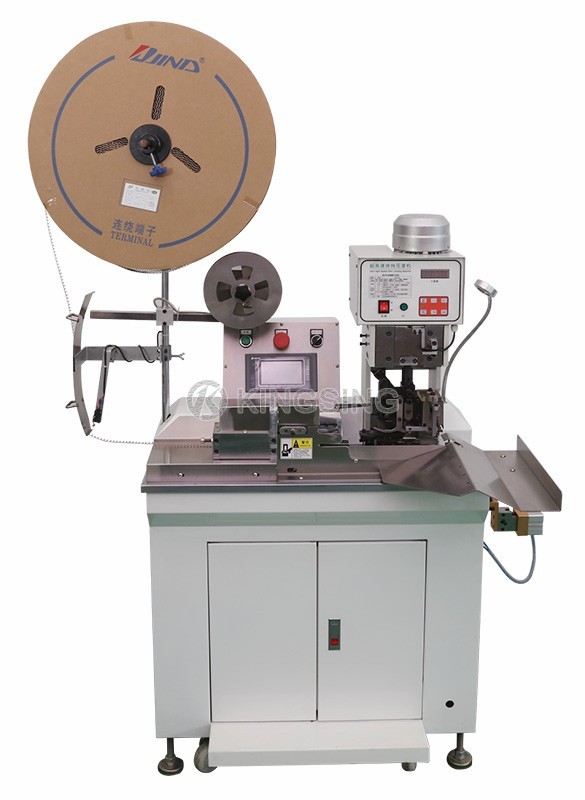

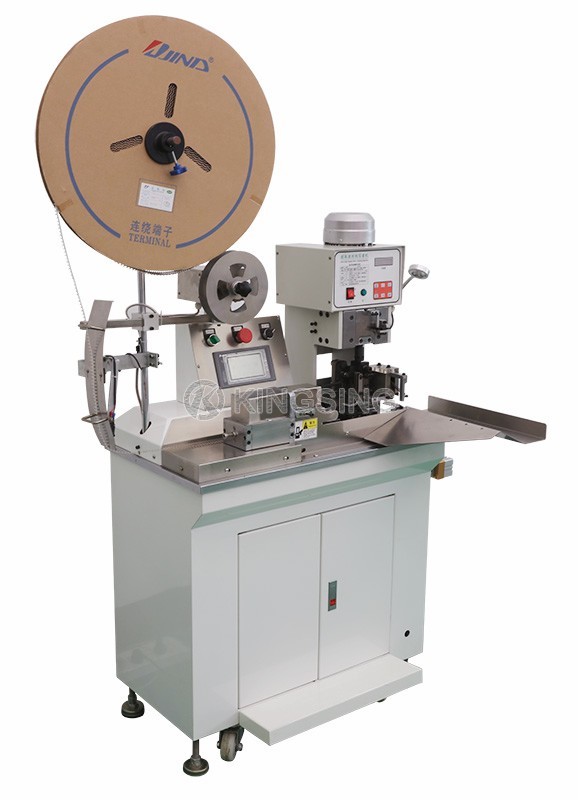

This is a semi-automatic flat cable crimping machine, which is suitable for processing 2~40Pin flat cables. Before using this machine, the flat cables need to be pre-stripped and separated, and then the operator only needs to manually put the cable head into the processing position. It can be activated by sensor inductively or by stepping on the foot switch. The special flat cable crimping mold can sort out the cables one by one and crimp the terminals, and the operation is stable. The workmanship of the whole machine is precise, and the translation mechanism is driven by a high-precision servo motor for precise positioning.

Download: (1)

Applicable wire: flat wire, double wire, multi-core flat sheathed wire

Number of core wires: 2~40Pin

Applicable wire diameter: AWG28~18 (0.1~1.0mm2)

Core wire outer diameter: Φ0.6~3.3mm

Splitting wire length: 25~35mm or 20~25mm optional

Min. wire length: 65mm

Applicable terminal type: cross feed terminal

Crimping machine output: 1.5T

Crimp stroke: 30mm

Start mode: sensor start, foot switch start

Production efficiency: 1000~2000 pieces/hour

Operation interface: color touch screen

Air pressure: 0.4~0.6Mpa

Power supply: 220V 50/60Hz

Net weight: 170kg

Dimensions: 780*440*1300mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
