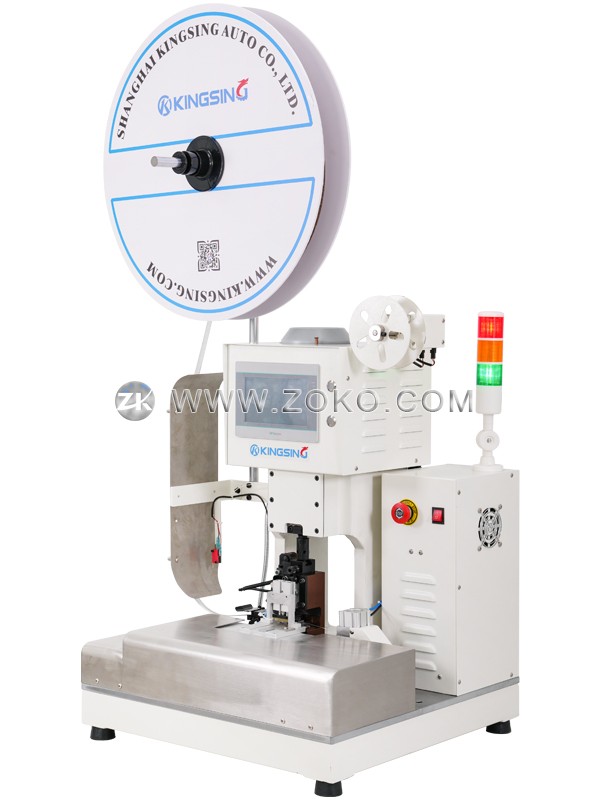

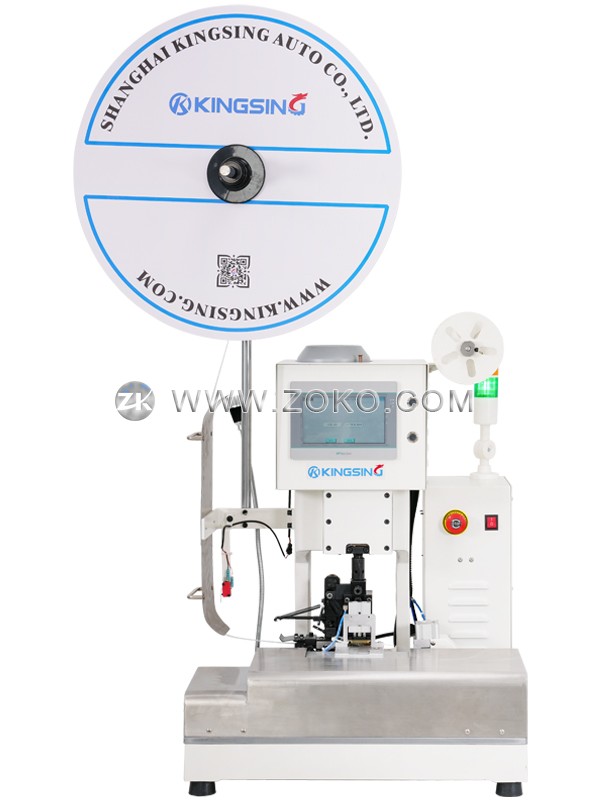

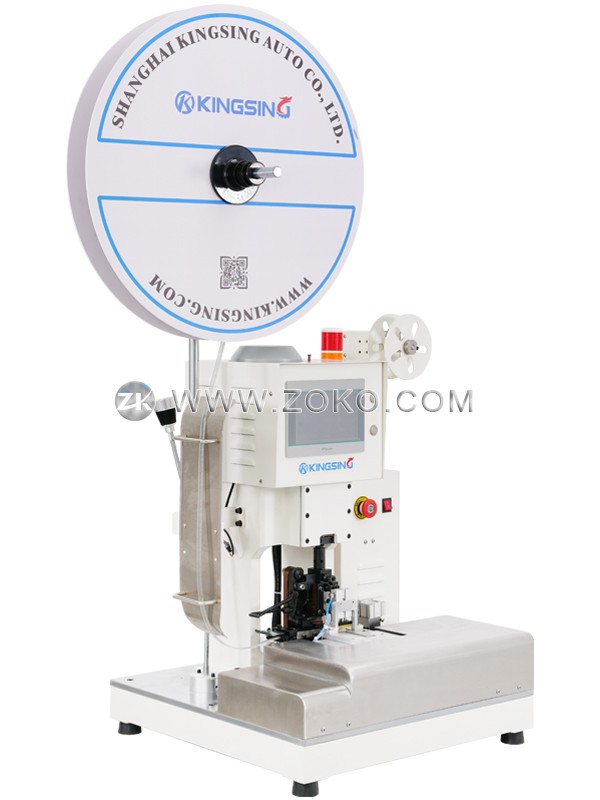

Servo Type FFC Flat Cable Crimping Machine

The workmanship of the whole machine is precise, using SMC cylinder, Taiwan silver wire rod, Taiwan TBI guide rail, Omron sensor, XY translation mechanism is driven by servo motor, and the positioning is accurate. The terminal machine is integrally formed of ductile iron, with strong rigidity, stable and reliable crimping height, and a built-in terminal material shortage sensor. In addition, a terminal pressure monitor can be selected to monitor the pressure curve change of each crimping process in real time. When the pressure is abnormal, it will automatically Alarm shutdown. The machine is also equipped with a safety shield, an emergency stop button, and a three-color alarm light, and the red light will light up when an abnormality occurs.

Color touch screen operation interface, the position of the wire, the position of the crimping terminal, and the number of wire pins can be directly set in the program. It supports the function of skip crimping, which can skip the specified core wire without crimping the terminal. (For example, the 10Pin wire can realize the 3rd and 5th non-crimped terminals, and the remaining 8 wires are all crimped terminals). The program memory function can save the processing parameters of different wires in the database, and when switching products, the corresponding processing parameters can be called out with one key, saving debugging time.
