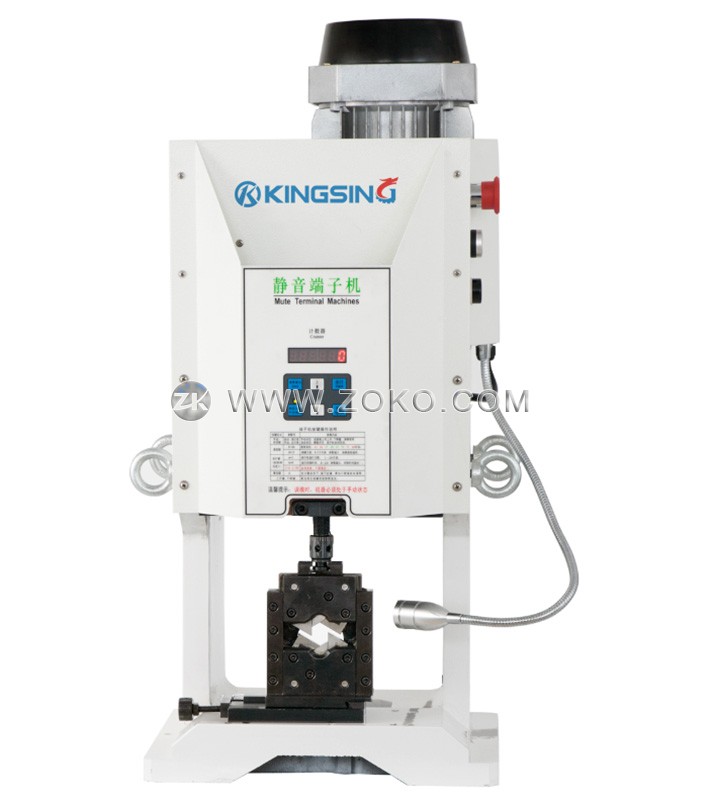

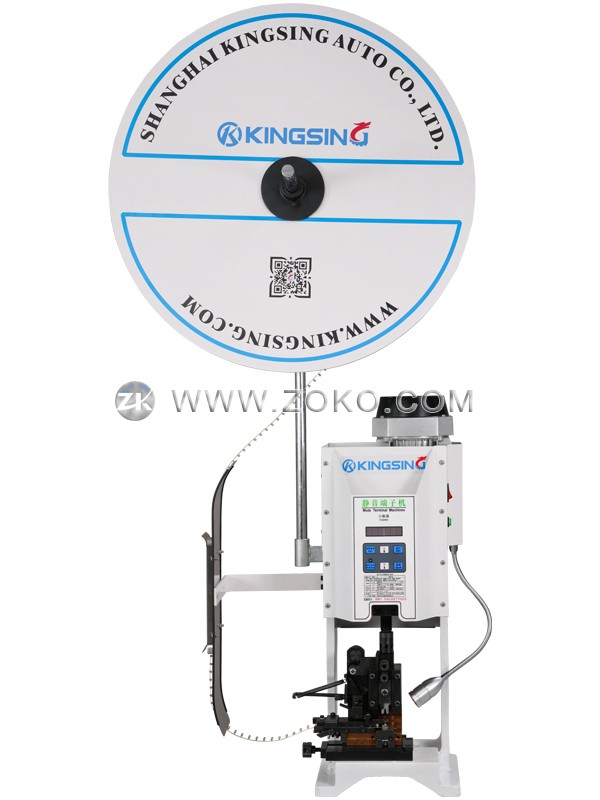

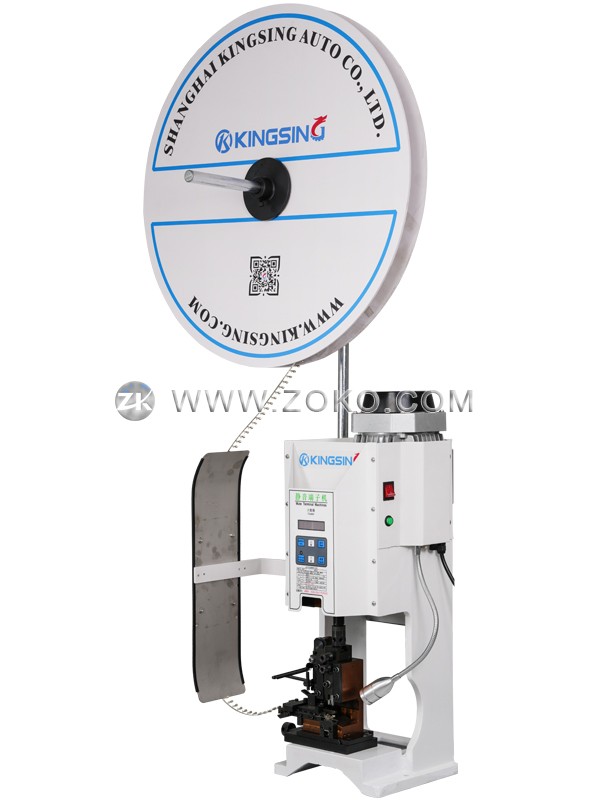

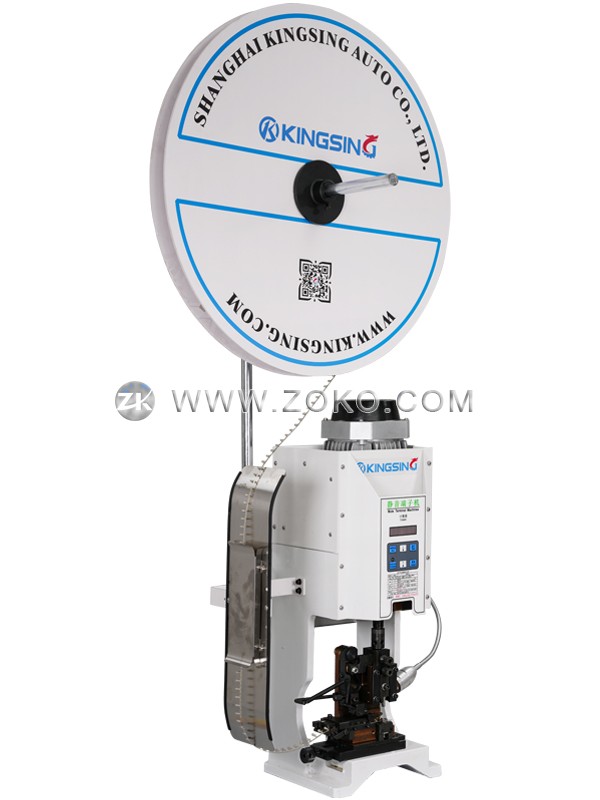

Semi-automatic Terminal Crimping Machine

  • Model:KS-TQ10 Series
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

The semi-automatic  crimping machine KS-TQ10 series ensure that the right amount of force and displacement is applied to terminals when they are crimped to wires, our models ranging from1.5 to 20.0 Tons in universal and standard configurations, various terminals can be crimped in one machine by on-touch change of the applicator, wire and insulation crimp height can be controlled by mechanical adjustments. The noise is very small thanks to the high-tech inverter motor drive, excellent price/performance ratio.

Download: (1) (2) (3) (4)
ModelMax. Crimping ForcePower RatingNet WeightDimension(L×W×H)
KS-TQ10011.5Ton550W35kg210*210*580mm
KS-TQ10022Ton750W48kg220*240*640mm
KS-TQ10033Ton1100W50kg220*240*640mm
KS-TQ10044Ton1500W70kg260*300*710mm
KS-TQ10066Ton2200W135kg300*380*820mm
KS-TQ10088Ton3000W140kg300*380*820mm
KS-TQ1010
10Ton3000W145kg300*380*820mm
KS-TQ1012
12Ton3600W150kg300*380*820mm
KS-TQ1020
20Ton4500W265kg560*420*900mm

Crimp stroke: 30mm (40mm can be customized)

Power Supply: 110/220V  50/60Hz

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
