  3. Cable Lug Crimp Machine

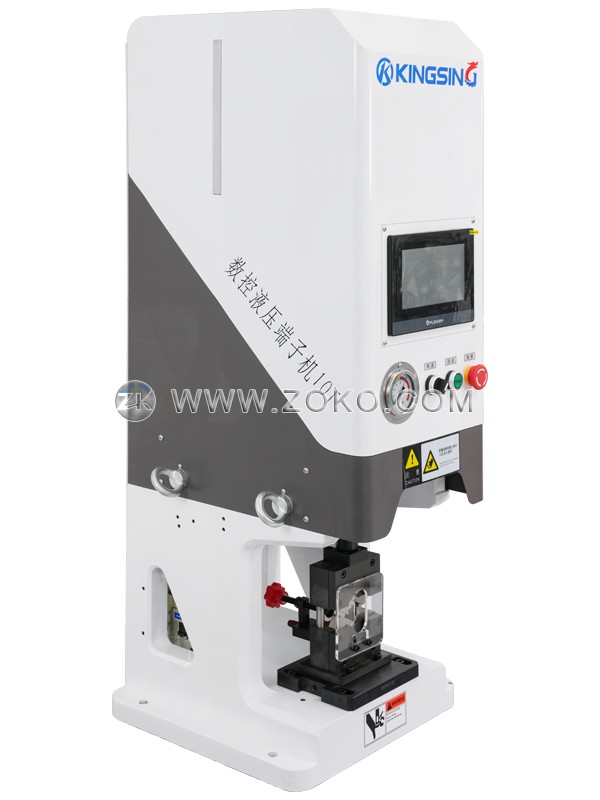

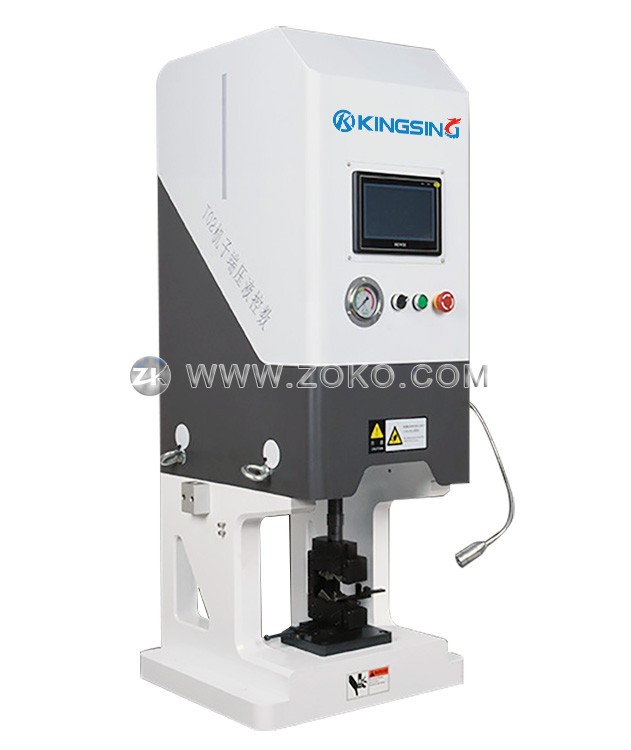

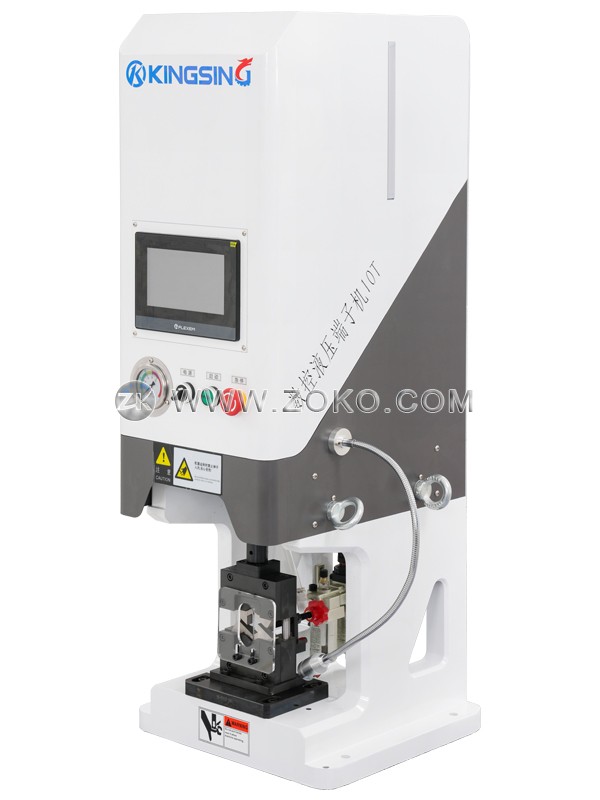

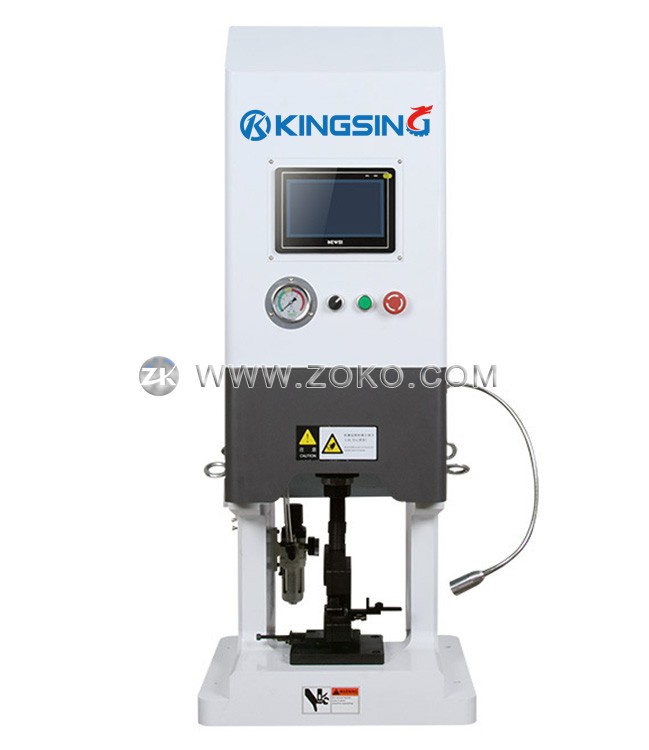

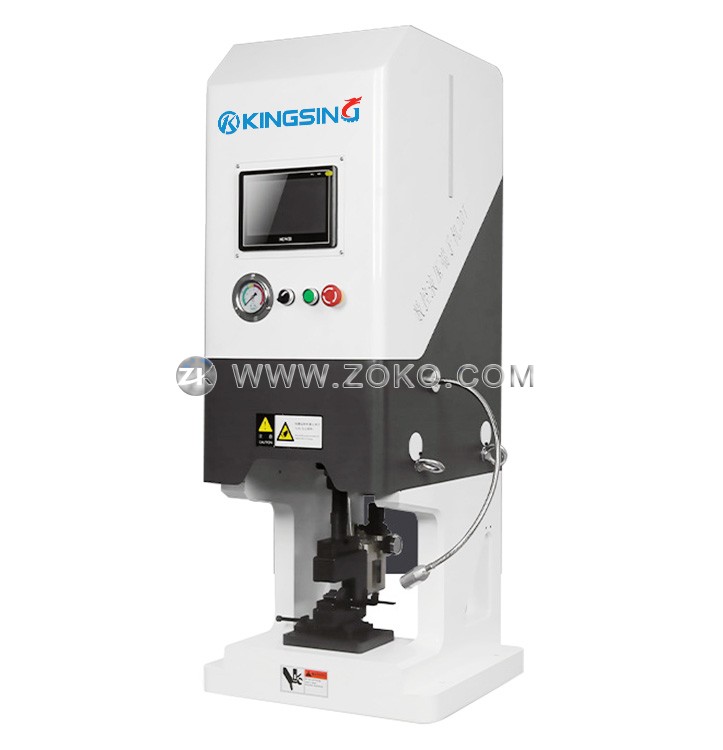

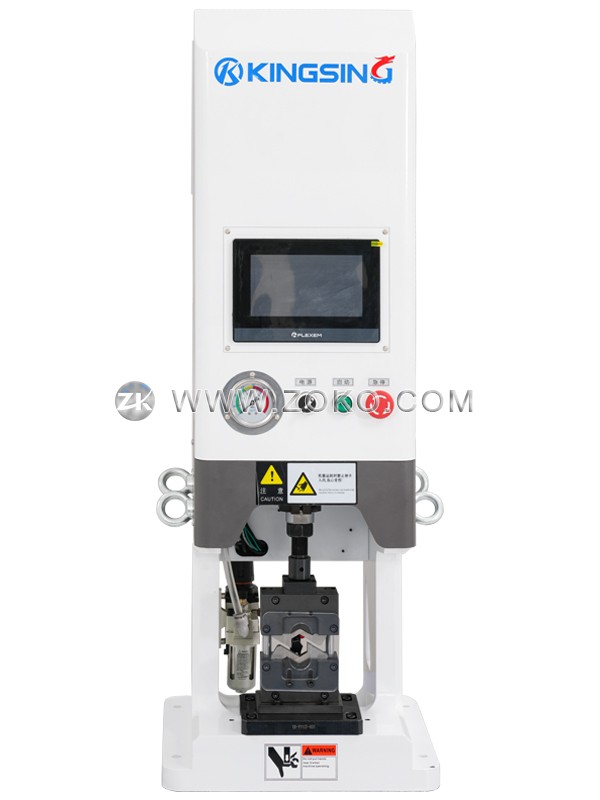

High Precision Pneumatic Hydraulic Crimping Machine

  • Model:KS-T630 series
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This is a pneumatic-hydraulic hybrid drive crimping machine, which can be divided into 4 sub-models according to the crimping force (see technical parameters for details). Compared with the traditional hydraulic crimping machine, its speed is greatly improved, the hydraulic mechanism only starts working in the final crimping stage, and it only takes about 3 seconds to crimp a terminal.

  2. This machine is suitable for crimping 2.5~240mm2 wires, and is widely used in wire harness processing industries such as new energy and electric vehicle charging piles. Support a variety of applicators, such as: hexagonal applicators, quadrilateral applicators, four-point crimping applicatoes, pneumatic feeding applicators, B-shaped crimping applicators, etc. One machine can crimp a variety of different terminals, just change the corresponding applicator.

  3. Color touch screen operation interface, crimping height can be set directly in the program, no need to manually adjust the screw. The built-in high-precision encoder controls the crimping height, and the program supports a variety of cyclic crimping with different crimping heights, and can continuously crimp terminals of different heights. With a program memory function, the crimping parameters of different products can be stored in different program numbers, and the corresponding processing parameters can be called out with one key.

KINGSING

Download: (1)
Model
KS-T630AKS-T630BKS-T630CKS-T630D
Crimping Force6T10T20T30T
Applicable Wire Diameter2.5~35mm22.5~50mm22.5~95mm22.5~180mm2
Crimp Stroke50mm50mm100mm100mm
Net Weight
165kg180kg295kg320kg
Dimensions
470*390*942mm470*390*1022mm550*500*1240mm550*500*1340mm

Production efficiency: 800~1500 pieces/hour

Start mode: manual button, foot switch

Operation interface: 7-inch color touch screen

Air pressure: 0.5~0.8Mpa

Power Supply: 220V 50/60Hz

Optional functions: code scanning gun, MES system

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
