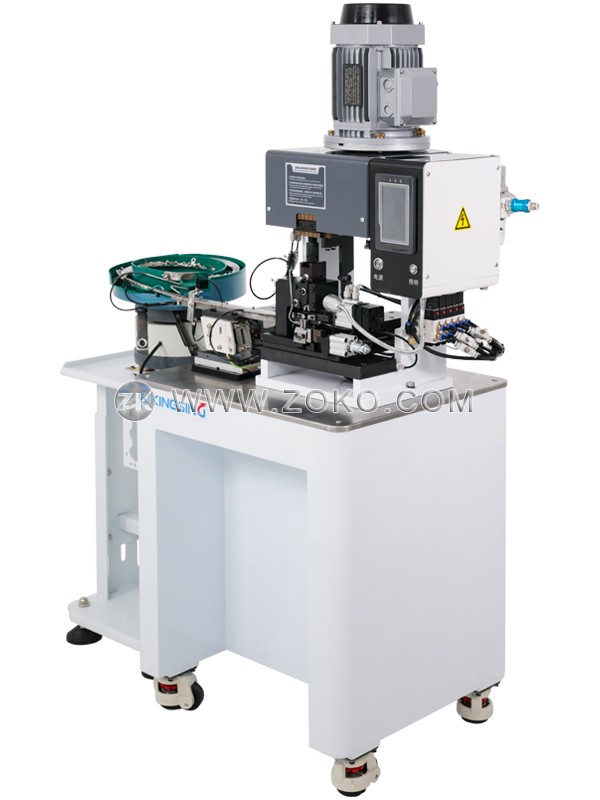

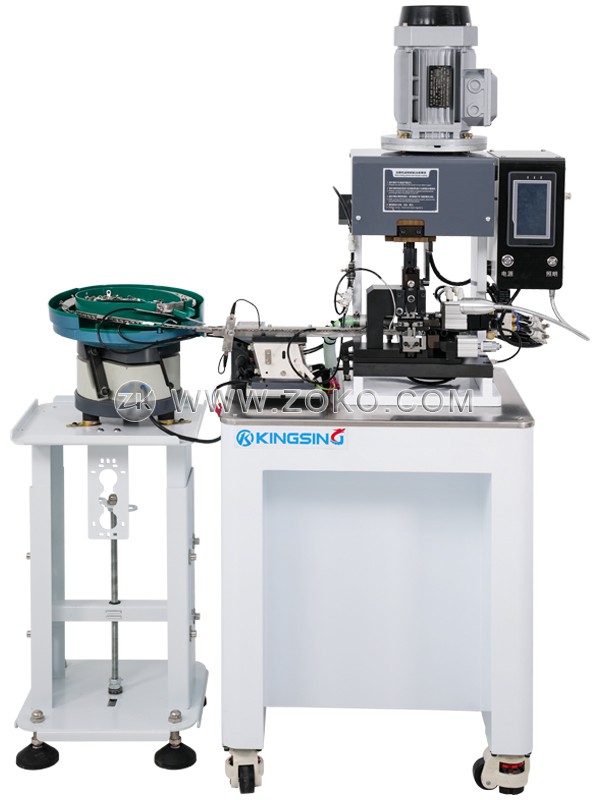

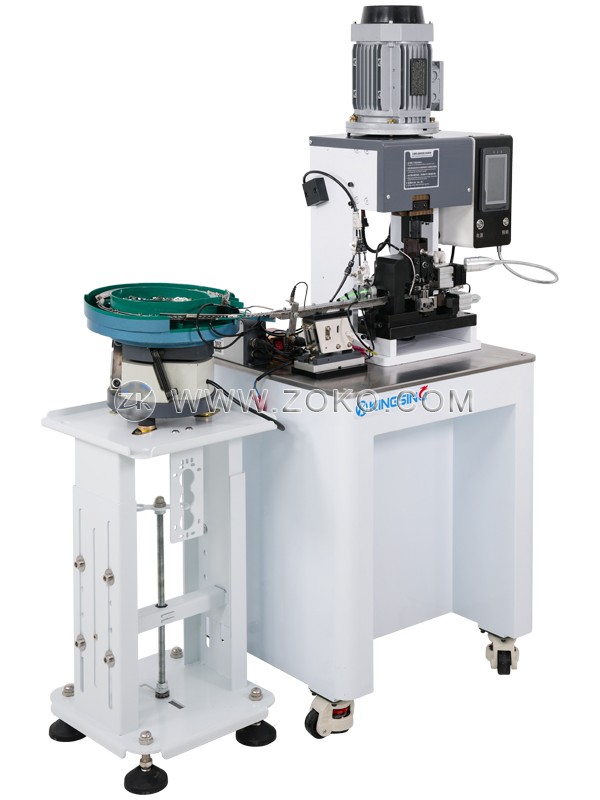

Bulk Terminal Vibration Disc Feed Stripping and Crimping Machine

  • Model:KS-T903SV
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This is a semi-automatic wire stripping and crimping machine designed for crimping bulk terminals that are automatically fed by vibrating discs. The wire does not need to be pre-stripped, just put the wire end into the crimping position, and the machine will automatically strip the wire first and then crimp the terminal. Combining the processes of stripping and crimping terminals can effectively reduce labor costs and improve product consistency.

  2. This machine adopts frequency conversion motor for precise control, and has the characteristics of low noise, low power consumption, fast speed and high precision. The pressure can reach 3T, and the wire rod can be processed up to 2mm2. The stripping action is driven by the cylinder, the cutting depth of the stripping knife can be adjusted accurately, the stripping length is accurate, and the crimping positioning is precise. The waste wire sheath is automatically discharged through the pipeline by vacuum suction, and the terminal backing paper is automatically recycled into rolls through the paper winder, which can keep the working environment clean.

Download: (1)

Applicable wire diameter: AWG16~32

Stripping length: 1~10mm

Error range: 0.05~0.1mm

Crimping force: 3.0T

Mold stroke: 35mm

Applicable terminals: bulk terminals

Production efficiency: 1000~2000 pieces/hour

Air pressure: 0.4~0.6Mpa

Working voltage: 200~240V 50/60Hz

Rated power: 1500W

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
