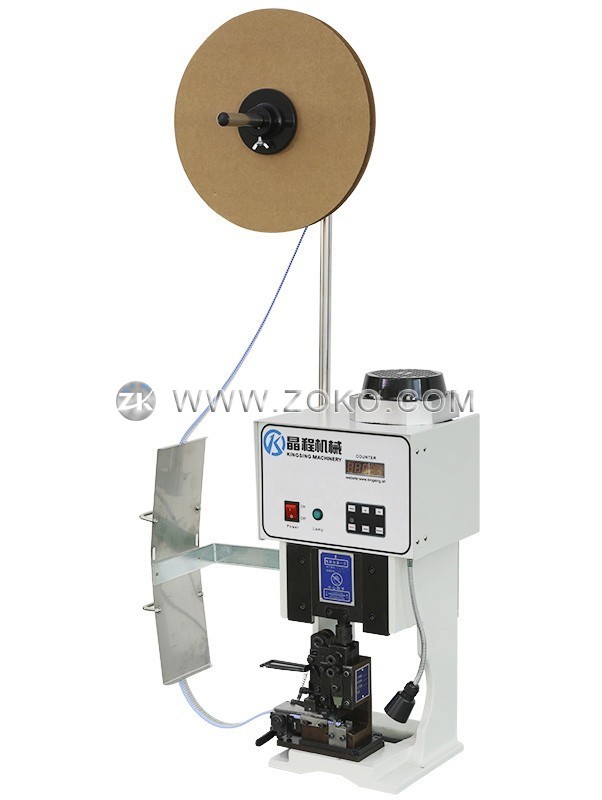

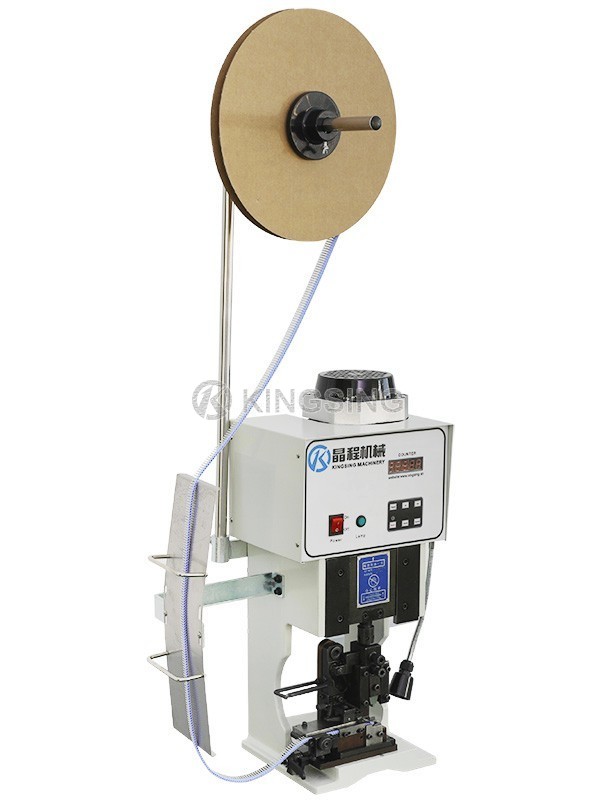

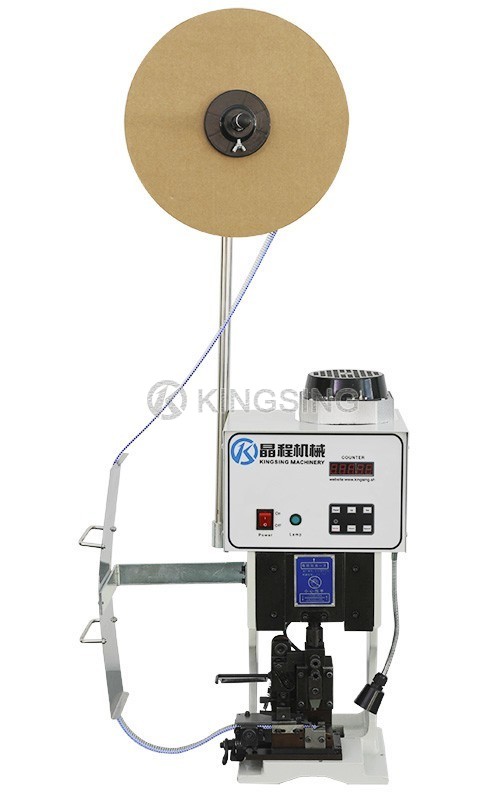

Electric Terminal Crimping Machine

  • Model:KS-T93 series
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This series is an economical silent crimping machine with 6 sub-models (see technical parameters for details). This series of crimping machines is highly versatile, and can crimp all kinds of cross-feed terminals, direct-feed terminals, U-shaped terminals, flag-shaped terminals, double-tape terminals, tubular insulated terminals, bulk terminals, etc. When crimping different terminals, only the corresponding crimping applicators need to be replaced. The default crimping stroke is 30mm, and the standard OTP bayonet applicator is used to support quick applicator replacement. In addition, the model with 40mm stroke can also be customized, and the use of European applicators is supported.

  2. Driven by a variable frequency motor, the motor only starts to work when crimping, the noise is smaller than the traditional crimping machine, and it saves power. There is a counter on the control panel, and the crimping speed and crimping force can also be set. The fuselage is integrally formed with nodular cast iron, the whole machine has strong rigidity, and the crimping size is stable.



Download: (1) (2) (3) (4) (5) (6)
ModelMax Crimping ForceMotor PowerNet WeightDimension
KS-T9321.5T550W35kg280*250*600mm
KS-T933
2T750W50kg320*280*650mm
KS-T934
3T1000W55kg320*280*660mm
KS-T935
4T1500W75kg350*320*720mm
KS-T936
6T1800W95kg300*300*820mm
KS-T938
8T3000W130kg300*380*820mm
KS-T931010T3000W145kg
300*380*820mm
KS-T9312
12T3600W150kg300*380*820mm

Crimp stroke: 30mm (40mm can be customized)

Voltage: 220V 50Hz

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
