  3. Ultrasonic Welding Machine

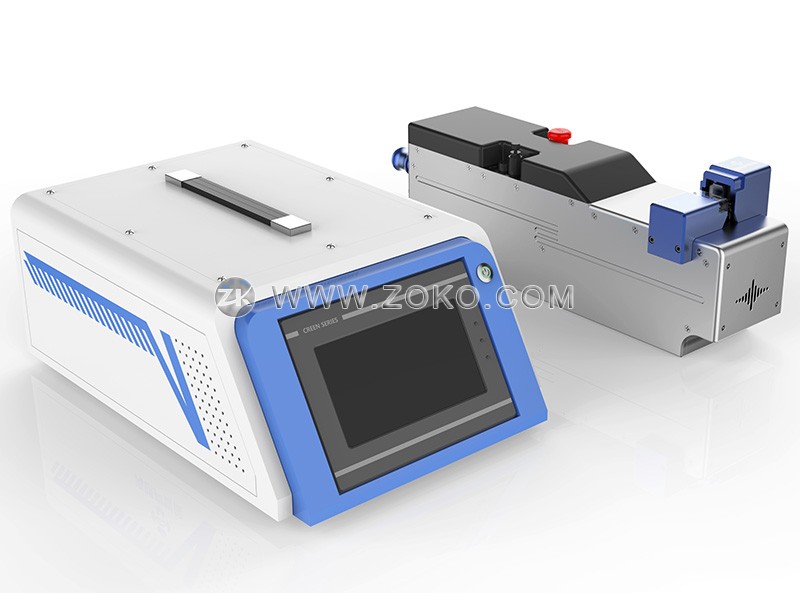

Economical Ultrasonic Wire Harness Welding Machine

  • Model:KS-U20
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

This is an economical ultrasonic wire harness welding machine, which is suitable for combining and welding multiple copper or aluminum wires together, and the width and height of the welding shape can be adjusted. The ultrasonic welding machine converts electrical energy into mechanical vibration through the transducer and acts on the conductor. The heat generated by the vibration and friction will melt the metal, and the cylinder will exert a certain pressure to form the fusion between the molecular layers. During the welding process, no current passes through the conductor to be welded, the welding time is short, the strength is high, and the resistivity is almost 0. It is mainly used in the fields of automobile wiring harness and motorcycle wiring harness.

Applicable wire diameter: 0.3~10mm2

Welding size: width ≤ 10mm, height ≤ 6mm

Ultrasonic frequency: 20KHz

Ultrasonic power: 2000W

Welding time: 0.05~1 second

Welding head stroke: 20mm

Production efficiency: ≈0.7 seconds/time

Operation interface: color touch screen

Air pressure: 0.4~0.7Mpa

Working voltage: 220V 50/60Hz

Machine net weight: 54kg

Ultrasonic power supply size: 385*350*165mm

Ultrasonic welding machine size: 573*220*175mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
