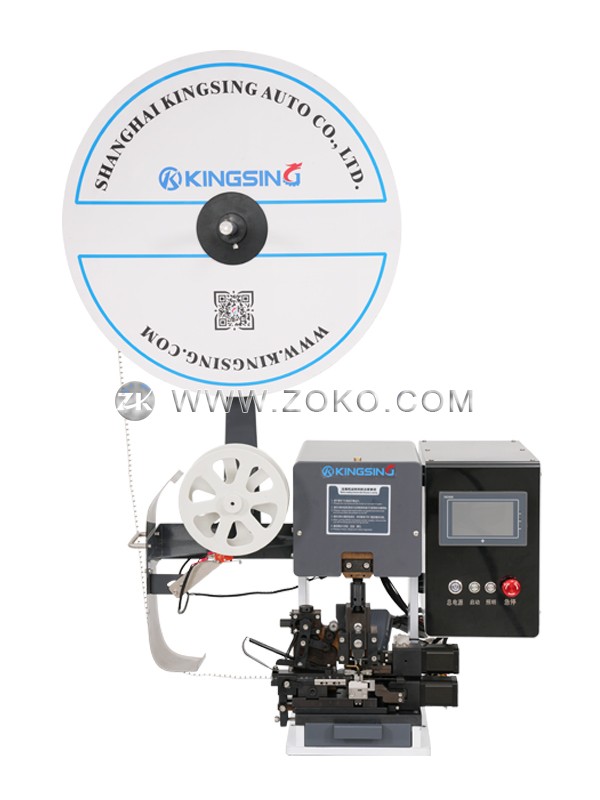

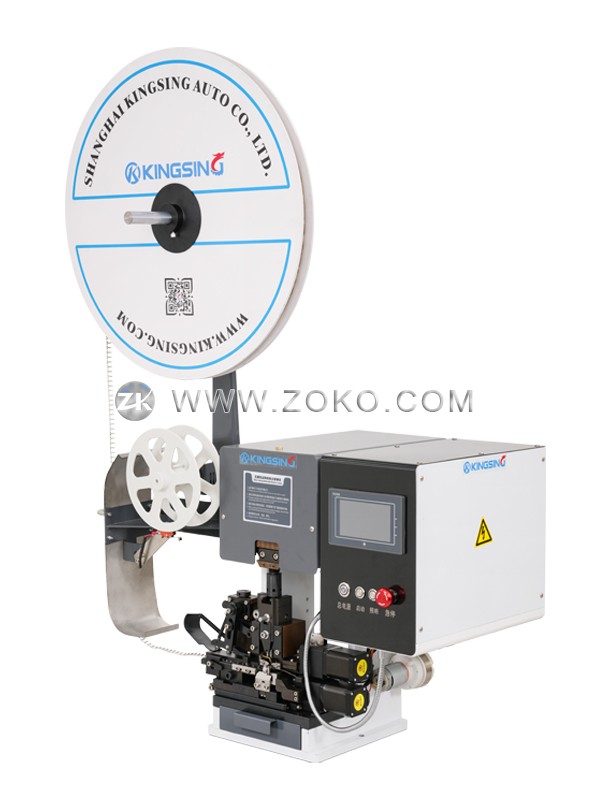

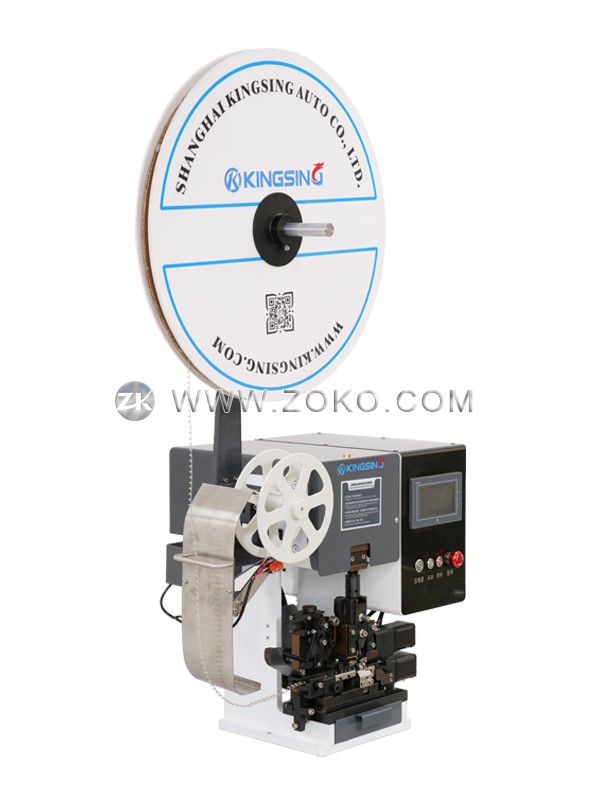

Pure Electric Servo Type Wire Stripping and Crimping Machine

This is a pure electric servo type wire stripping and crimping machine. The crimping motor adopts high-precision Mitsubishi servo motor, which has high speed and high precision. It can work when plugged in and does not require an air source. It is suitable for crimping various cross-feed terminals. After the wire head is placed in the crimping position, the machine will automatically strip the wire first and then crimp the terminal. The process of stripping and crimping is combined together, labor costs can be effectively reduced, and product consistency can also be improved. It is especially suitable for stripping and crimping terminals of sheathed core wires.

One machine can crimp a variety of cross-feed terminals, just replace the corresponding crimping blades, and the crimping height and crimping depth are easy to adjust. The crimping die of this machine can be replaced quickly, and the crimping die can also be replaced directly when crimping various terminals, which is more efficient and saves debugging time.

This machine replaces all the cylinders with electric motors, and the adjustment is easier. Color touch screen operation interface, parameters such as cutter depth, stripping length, clamping force, crimping position, etc. can be set directly on the touch screen without mechanical adjustment, which greatly simplifies the debugging work when one machine crimps multiple terminals.

The terminal backing paper is automatically recovered by the paper reel, and the automatic blowing and suction device is equipped next to the wire stripping blade, which can blow away the waste wire sheath, and always keep the working position clean. The air source is automatically generated by the machine without external air compressor.
