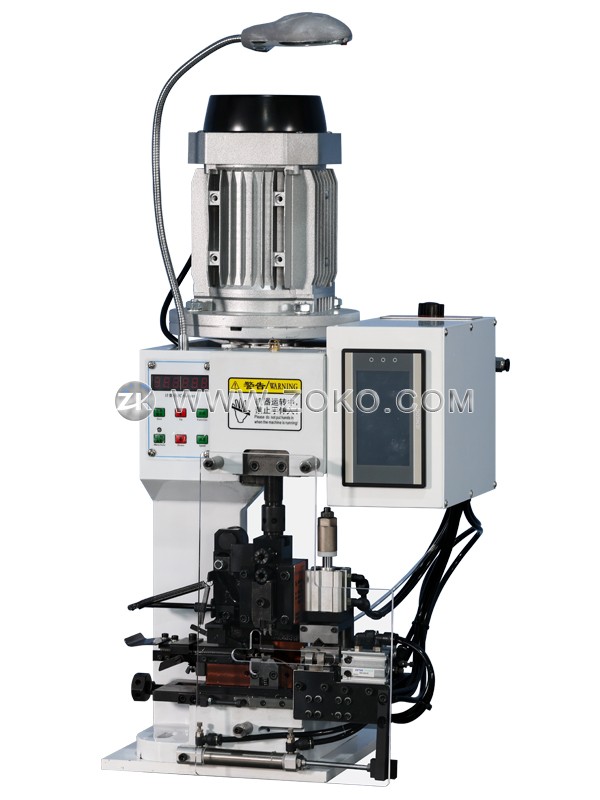

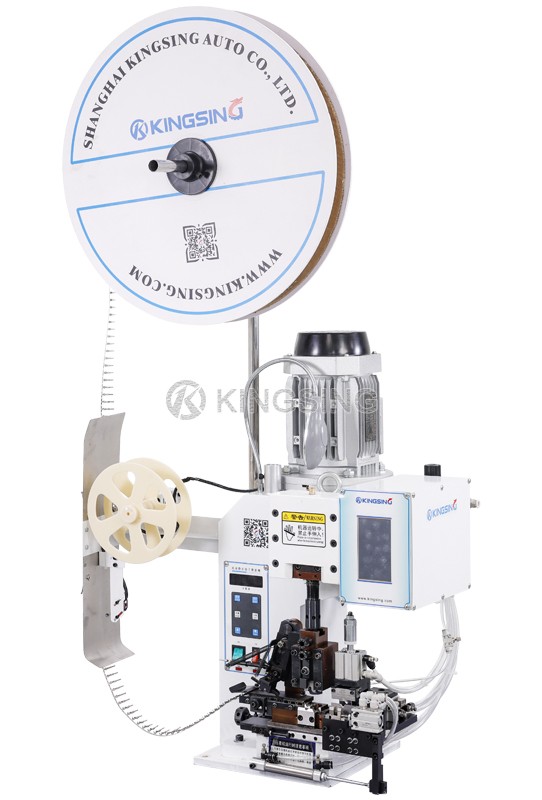

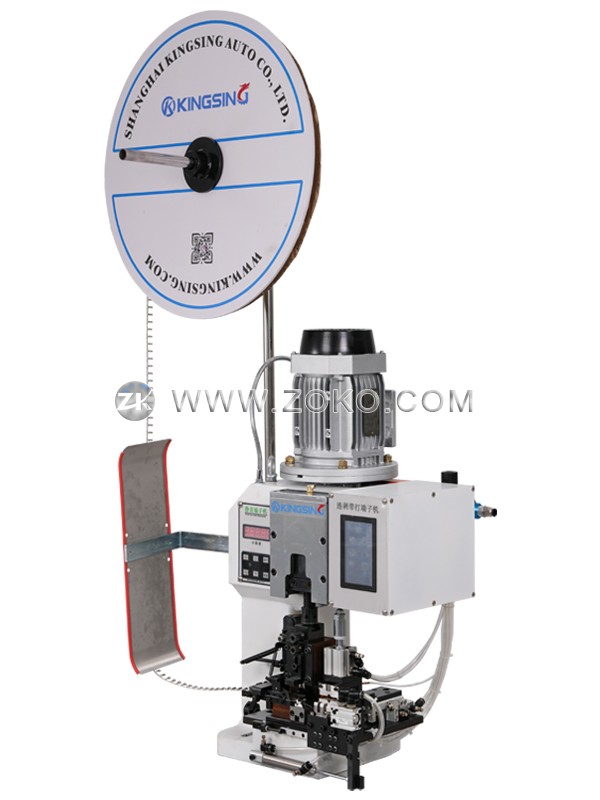

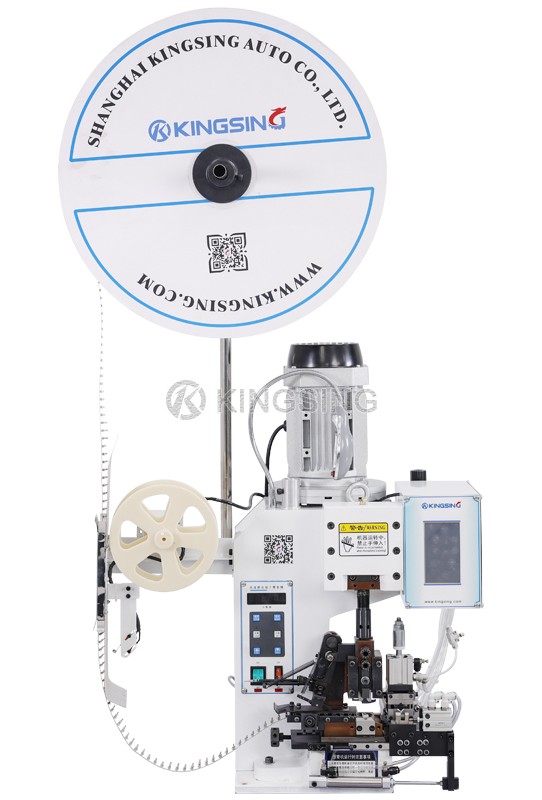

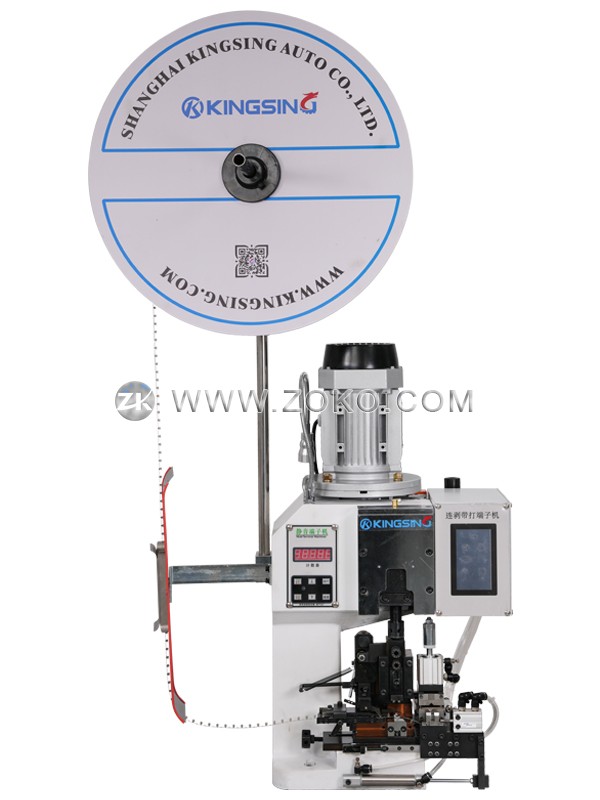

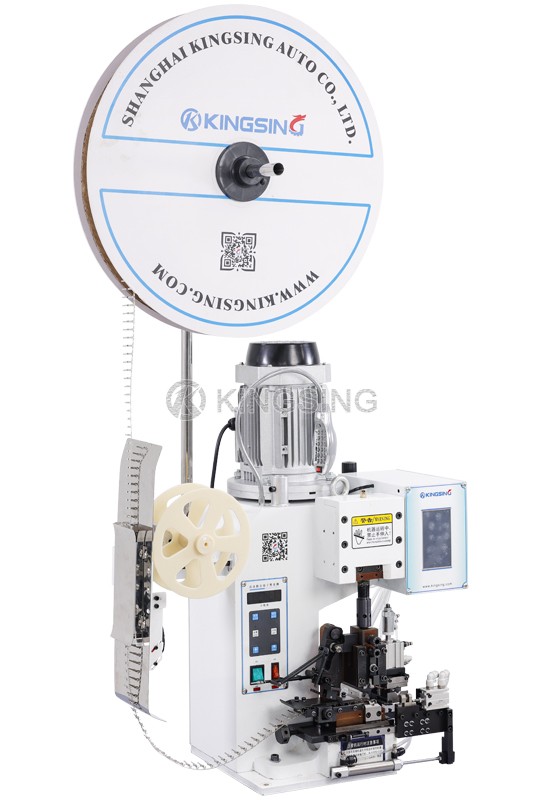

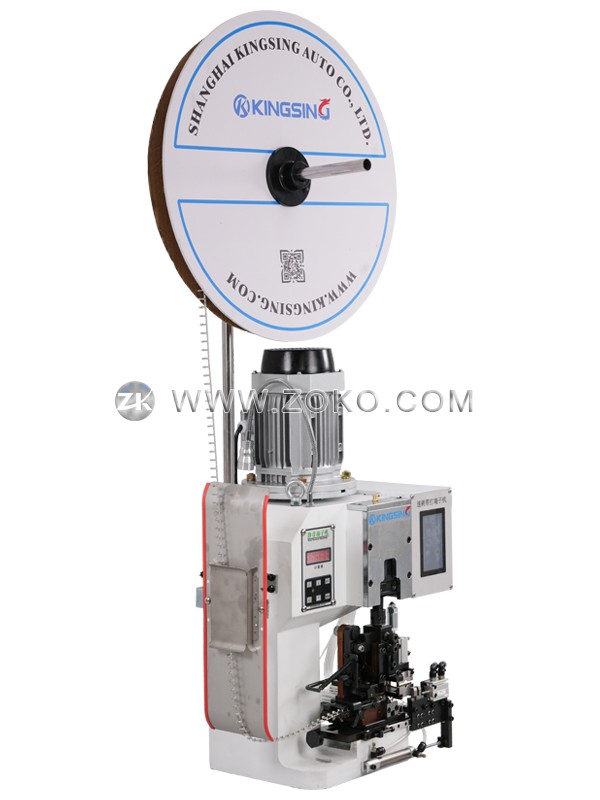

Multi-function Wire Stripping Crimping Machine

  • Model:KS-T9150
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  • Stable performance and low failures;

  • Reasonable space design and centralized functions;

  • Designed by human structural mechanics to reduce fatigue strength;

  • A wide range of applicators can be applied in terminal crimping machine;

  • Modularized structure design and mature controlling system;

  • lt combines wire stripping, crimping function and terminal crimping pressure detection (optional);

  • Terminal detection, air pressure detection, and other machine failures can be displayed and controlled in the main screen;

  • Molex applicator, JAM applicator, TE applicator, AMP applicator, Yazaki applicator and other applicators can be applied in this machine in general;

  • The pneumatic components are SMC, Airtac and other well-known brands, to ensure the machine stability and the parts service life.

  • Usage of high precision stepper motor and professional electrical and gas circuit design shift this machine towards high-efficient and modern production mode;

Download: (1) (2) (3)

Crimping Terminal:side feed terminals, straight feed terminals, double strip terminals, etc.

Speed:3000 pcs/hour (Excluding manual placing wire time)

Air Pressure:0.4~0.6Mpa (clean, dry and stable compressed air)

Crimping Stroke:30mm (40mm can be customized)

Applicable wire diameter: AWG28#~AWG14#

Stripping length: 1~8mm

Crimping Force:2 Ton

Power Rating:0.75KW

Net weight:80KG

Power Supply:AC220V 50Hz (Single-phase)

Dimension(W×L×H):460*320*730mm


Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
