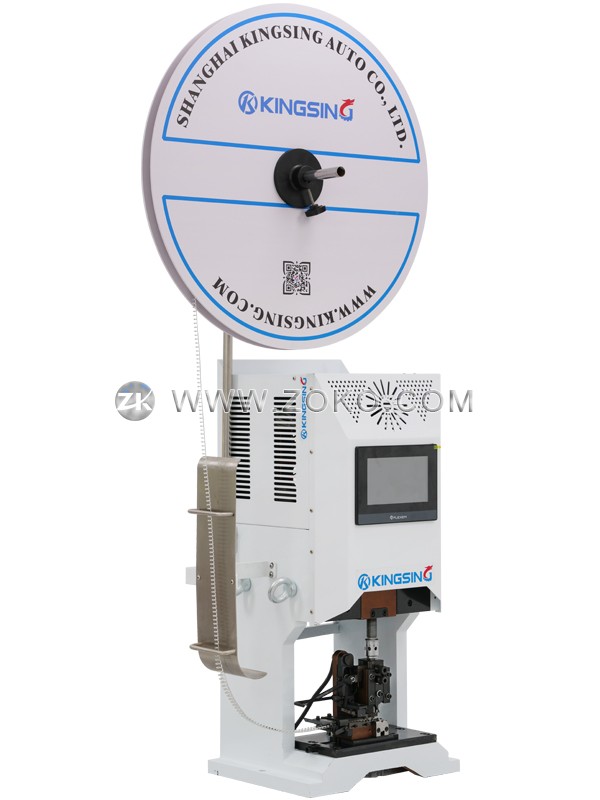

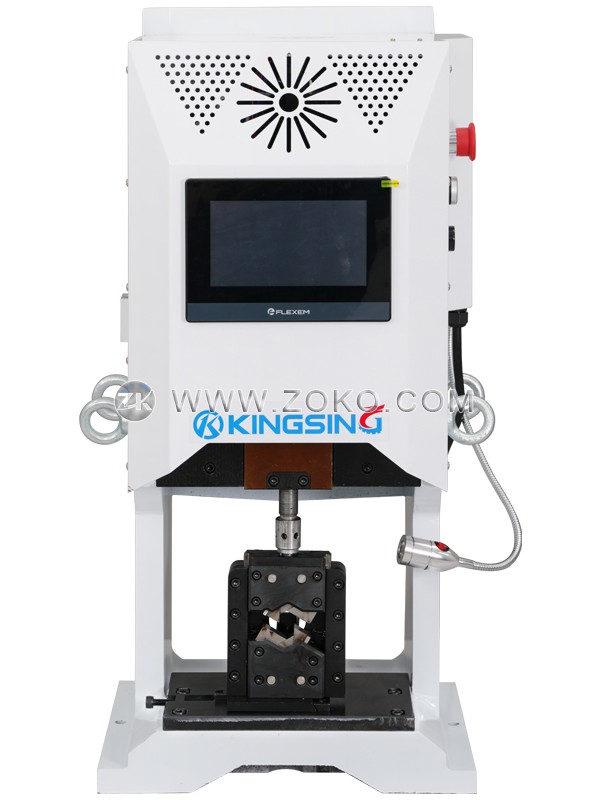

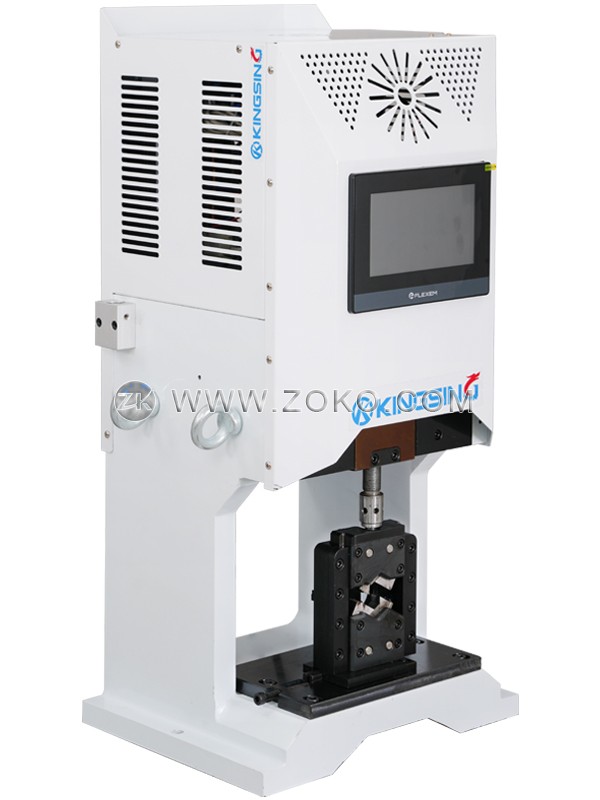

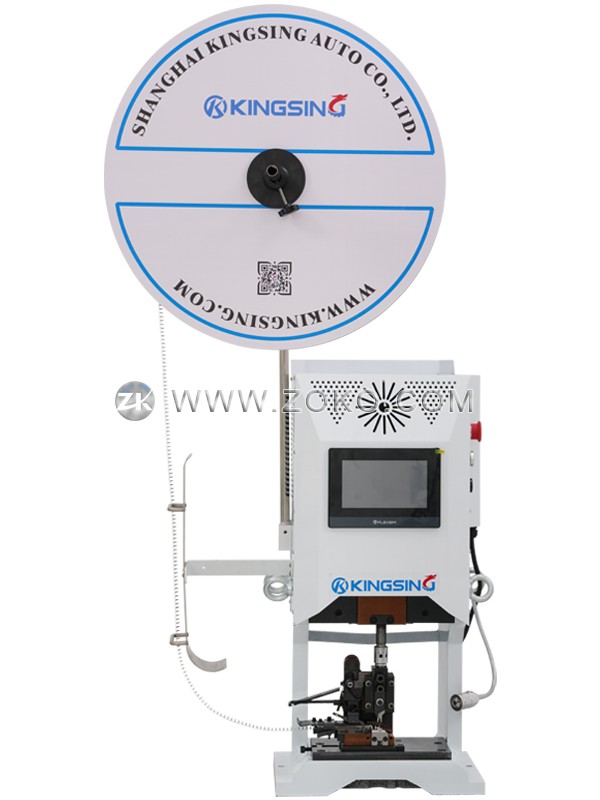

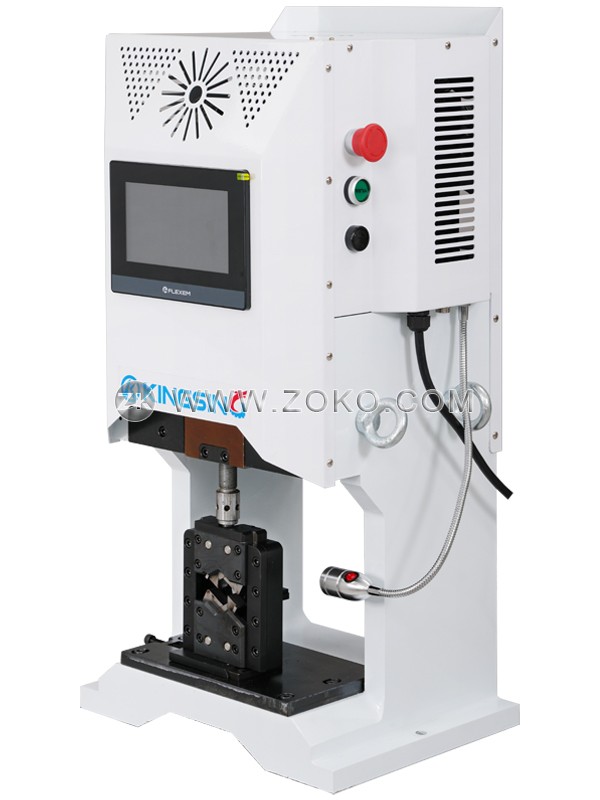

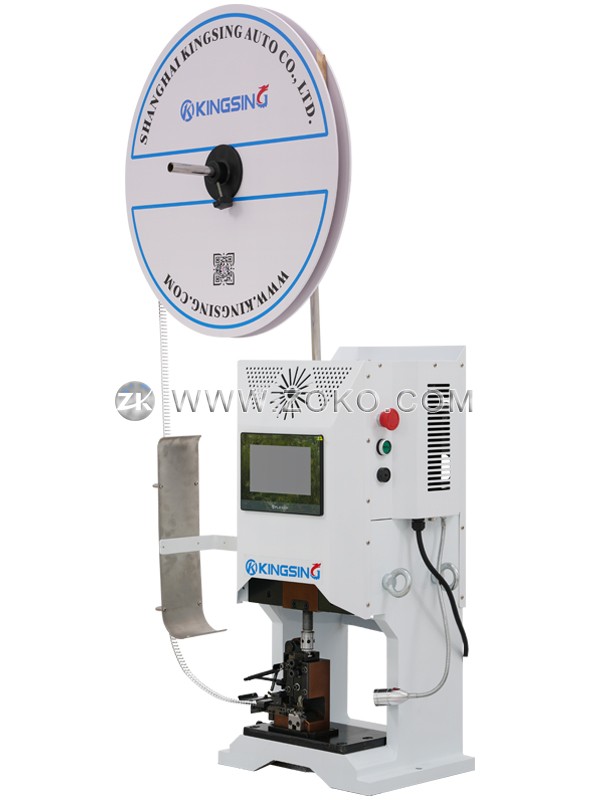

Servo-type Terminal Crimping Machine

  • Model:KS-TS21 Series
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This series is a servo-type terminal crimping machine, with 5 sub-models in total (see technical parameters for details). The crimping mechanism is driven by a high-precision servo motor. The body is integrally formed of ductile iron. The machine is rigid and stable in crimping size. The crimping force monitor can be selected, and it can automatically alarm and stop when the crimping force is abnormal.

  2. Color touch screen operation interface, the crimping stroke can be set directly in the program, no need to manually adjust the screw. The program memory function can save up to 120 sets of data, and the crimping parameters of different products can be saved in different programs. When changing the applicator, the corresponding parameters can be called out with one key, which is especially suitable for the occasion where one machine crimps many different terminals. The program has a built-in stroke measurement function, which can automatically measure the crimping stroke after the applicator is installed, which greatly saves debugging time. For the occasion of crimping different wires on the same terminal, this machine can also set multiple different crimping heights for cyclic crimping. The holding time can be set in the program, that is, when the applicator is pressed down to the lowest point, it can stay for a specified time and then lift up to ensure that the crimping size is stable. With an RJ45 network interface, it can be connected to the local MES system through a LAN to realize remote reading and setting of parameters, remote order dispatching and other functions.

  3. This series of crimping machines is highly versatile, and can crimp various cross-feed terminals, direct-feed terminals, U-shaped terminals, flag-shaped terminals, double-tape terminals, tubular insulated terminals, aviation terminals, bulk terminals, etc. When crimping different terminals, only the corresponding crimping applicators need to be replaced. The default crimping stroke is 30mm, and the standard OTP bayonet applicator is used to support quick applicator replacement. In addition, models with a stroke of 40mm can also be customized to support the use of European applicators and other special applicators.

  4. The working mode of the servo motor can be set in the program, supporting full circle mode and half circle mode. The half-turn mode means that after the servo motor drives the punch down to the set crimping height, the motor starts to reverse to raise the punch. The advantage of this mode is that the crimping stroke can be set directly in the program without manual adjustment of the screw. . But the disadvantage is that it is only suitable for smaller terminals. When crimping large terminals, the crimping height may fluctuate due to excessive pressure. The full circle mode means that the servo motor drives the cam to rotate 360 degrees. In this mode, the motor always rotates a full circle for crimping. The crimping size is consistent and is not affected by the size of the terminal. But the disadvantage is that the adjustment of the crimping stroke is the same as that of the ordinary frequency conversion terminal machine, and it needs to be adjusted by manually adjusting the screw. Users can freely choose the working mode of the motor in the program according to the actual situation.

Download: (1) (2)
Model
Crimping ForceMotor PowerNet WeightDimension
KS-TS2102
2T1000W
38kg
KS-TS2104
4T1500W65kg
KS-TS2106
6T1500W150kg
KS-TS2108
8T2300W152kg
KS-TS2112
12T3600W160kg

Crimp stroke: 30mm (40mm stroke model can be customized)

Operation interface: color touch screen

Program saving: up to 120 groups of programs can be saved

Communication function: Built-in RJ45 network interface, can be connected to MES system

Working voltage: 220V 50/60Hz

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
