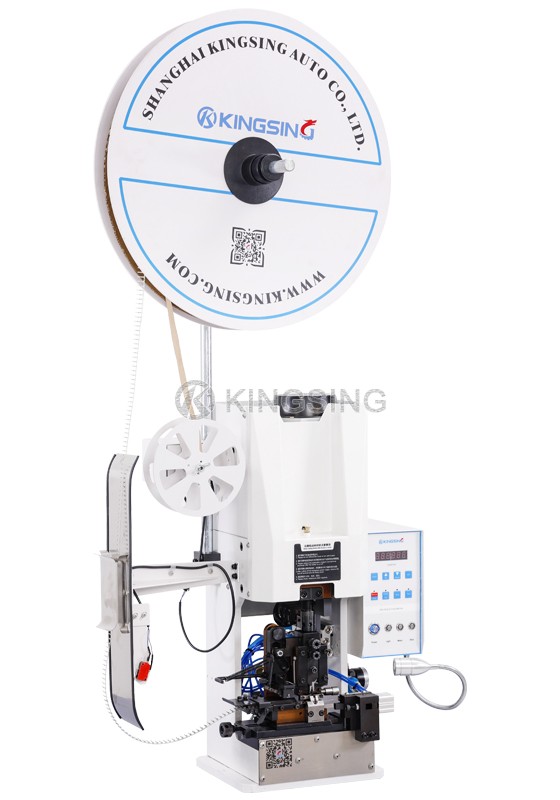

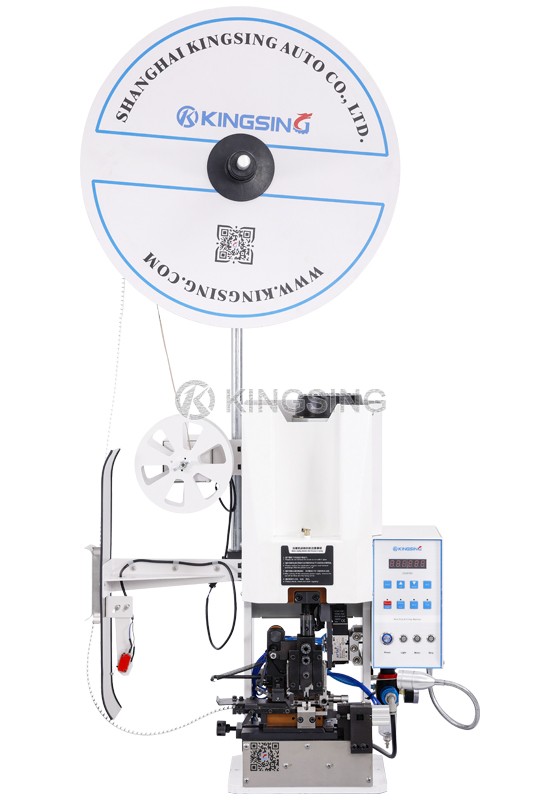

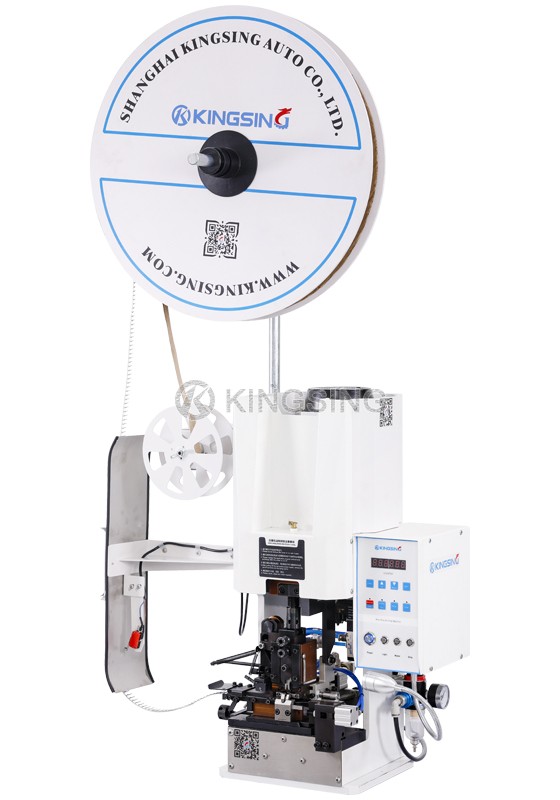

Economy Stripping and Crimping Machine

  • Model:KS-T9032
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

1. This is a economy stripping and crimping machine. Its advantage is that it adopts the crimping applicator with OTP bayonet, which supports quick replacement. It is suitable for crimping various reel-mounted cross-feed terminals, and it is suitable for double strips and strips in the middle. Or special terminals on the head can also be customized molds, especially suitable for occasions where one machine crimps a variety of different terminals.

2. This machine integrates the functions of wire stripping and terminal crimping. The operator only needs to put the wire head into the jig and lightly step on the foot switch to complete the action of stripping and crimping the terminal, which reduces the process flow and can be effectively Save labor and improve product consistency.

3. The crimping motor adopts frequency conversion motor for precision control, which has the characteristics of low noise, low power consumption, fast speed and high precision. The stripping action is driven by the cylinder, the tangent depth of the stripping blade can be adjusted precisely, the stripping length is accurate, and the crimping positioning is precise. The terminal backing paper can be automatically recycled by the paper winder, and the waste wire sheath is automatically blown away by the air blowing device, which can keep the working environment clean.

Download: (1)

Applicable wire diameter: AWG32~16

Stripping length: 0~8mm

Tolerance: 0.05-0.1mm

Applicable terminal: cross feed terminal

Crimp capacity: 2T

Crimp stroke: 30mm

Crimp motor: variable frequency motor

Start mode: foot switch start

Production efficiency: 1000~2000 pieces/hour

Air pressure: 0.4~0.6Mpa

Power supply: 200~240V 50/60HZ

Power rating: 750W

Net weight: 85Kg

Dimensions: 300×280×450mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
