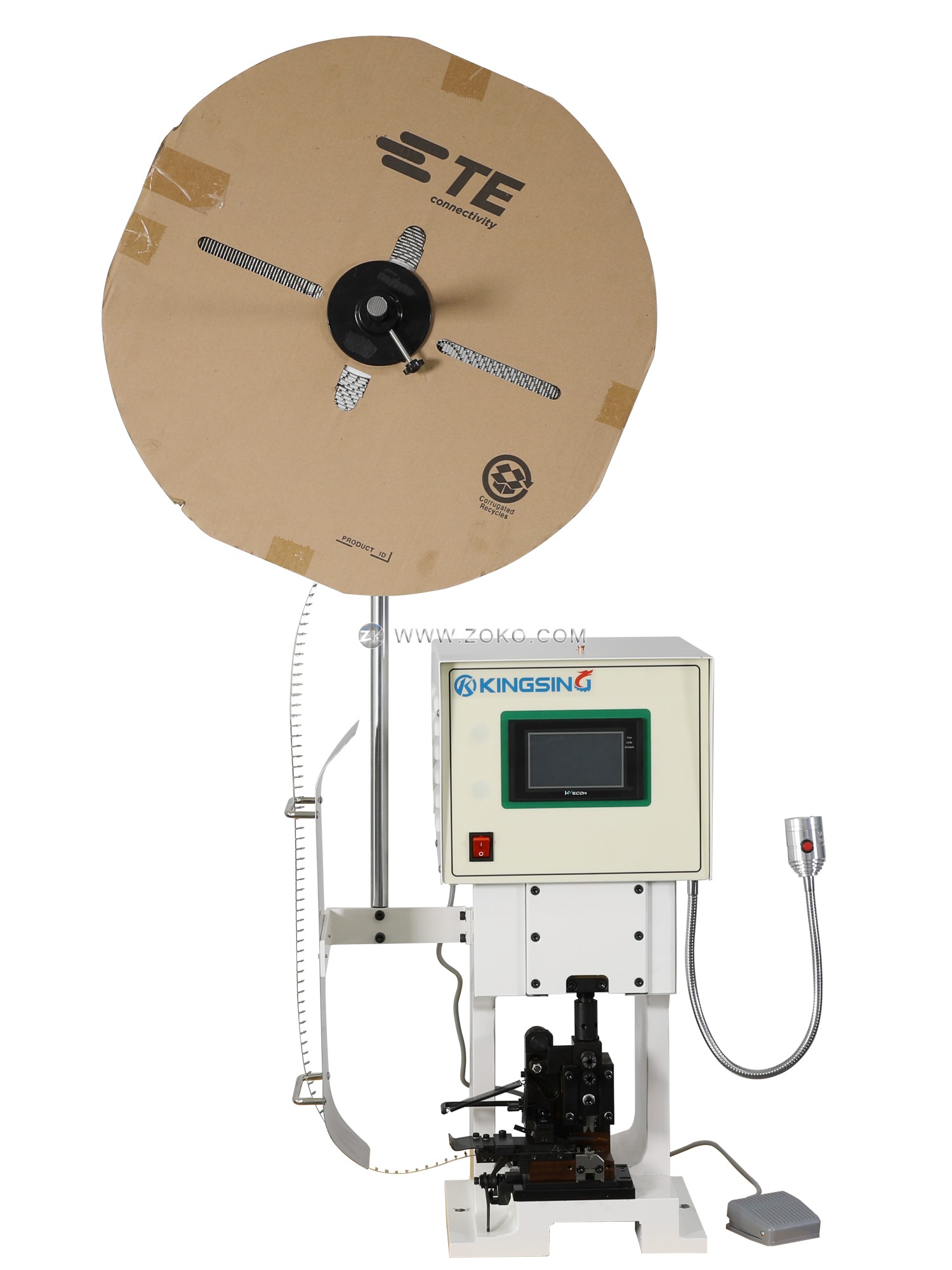

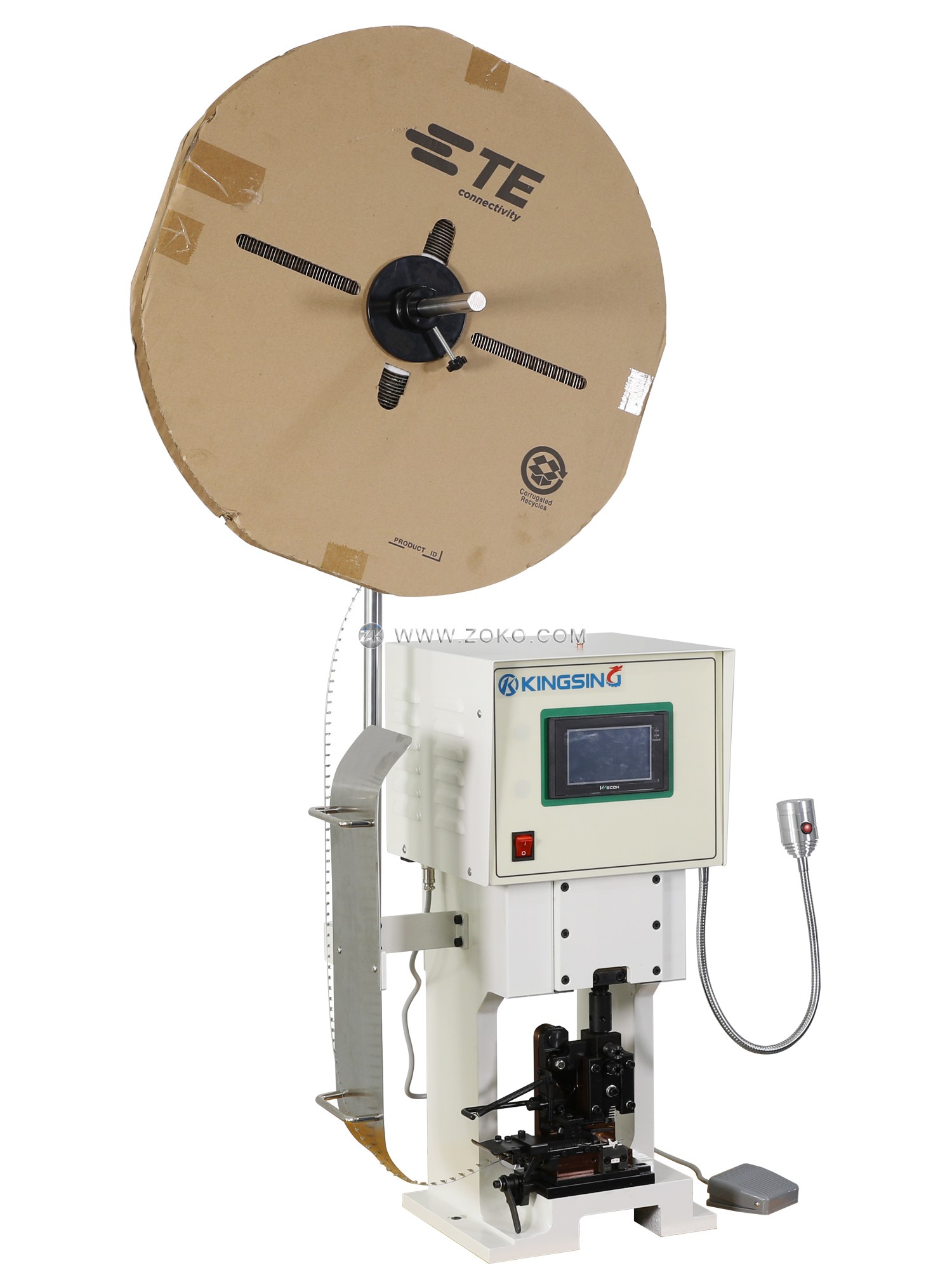

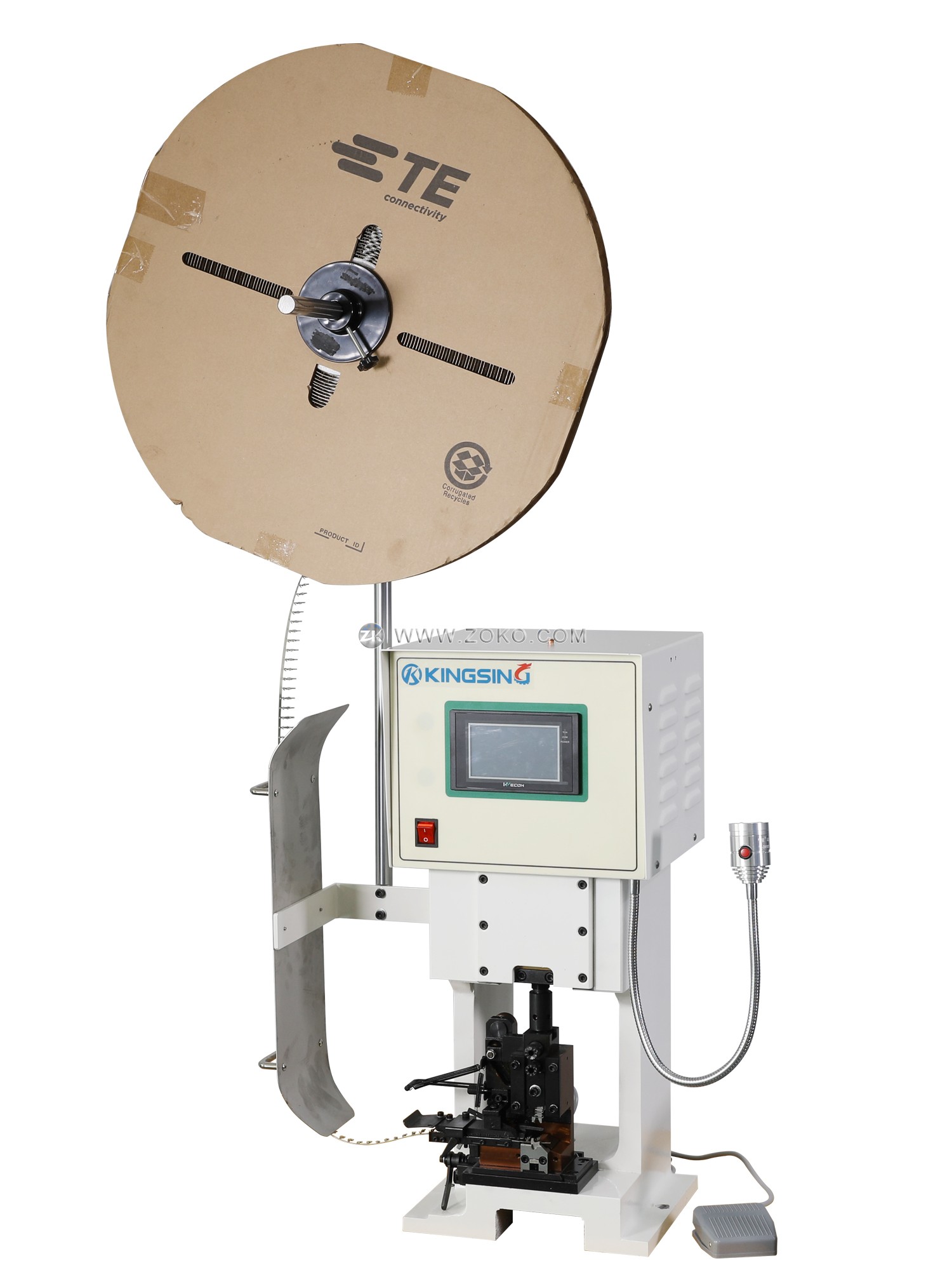

Servo Motor Terminal Crimping Machine

  • Model:KS-T5591 Series
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

KS-T5591 Series is a servo semi-automatic terminal crimping machine, the crimping mechanism is driven by a high-precision servo motor. It adopts color touch screen operation interface, the crimping stroke can be set directly in the program, no need to adjust the screw mechanically. The program memory function can save up to 99 groups of programs, the crimping parameters of different products can be saved in different programs. The program has a built-in stoke measurement function, which can automatically measure the crimping stroke after installing the applicator, greatly save the debugging time.

  • Robust & reliable;

  • Excellent price/performance ratio;

  • Operation is simple, the users can get started quickly without any training;

  • Equipped with color touch screen operation interface, the crimping parameter can be set in the screen directly, no need mechanical adjusting;

  • The whole crimping process is controlled by a servo motor, with high crimping precision, which can be fine-tuned at 0.01mm level;

  • The program has a built-in stoke measurement function, which can automatically measure the crimping stroke after installing the applicator, greatly save the debugging time.

Download: (1)
ModelCrimping ForceMotor PowerNet WeightDimension
KS-T559122T1000W63kg286*310*645mm
KS-T559133T1500W63kg286*310*645mm
KS-T559144T2000W150kg350*325*735mm
KS-T559166T2300W150kg360*325*755mm
KS-T559188T3000W155kg360*325*755mm

Optional features:

  1. 4T and above models can be equipped with a box-type workbench with universal casters to facilitate equipment movement.

  2. MES management: connect to the MES system through the network, and remotely issue production tasks.

  3. OES crimping force monitoring: Although the machine has built-in crimping force monitoring, its function and sensitivity are limited, and a high-precision OES crimping force can be selected.

  4. Crimping stroke: The default is 30mm stroke, OTP applicator card type, 40mm stroke can be customized, European applicator bayonet.

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
