Cut Length and Short Wire Stripping and Crimping Machine

  • Model:KS-T231
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

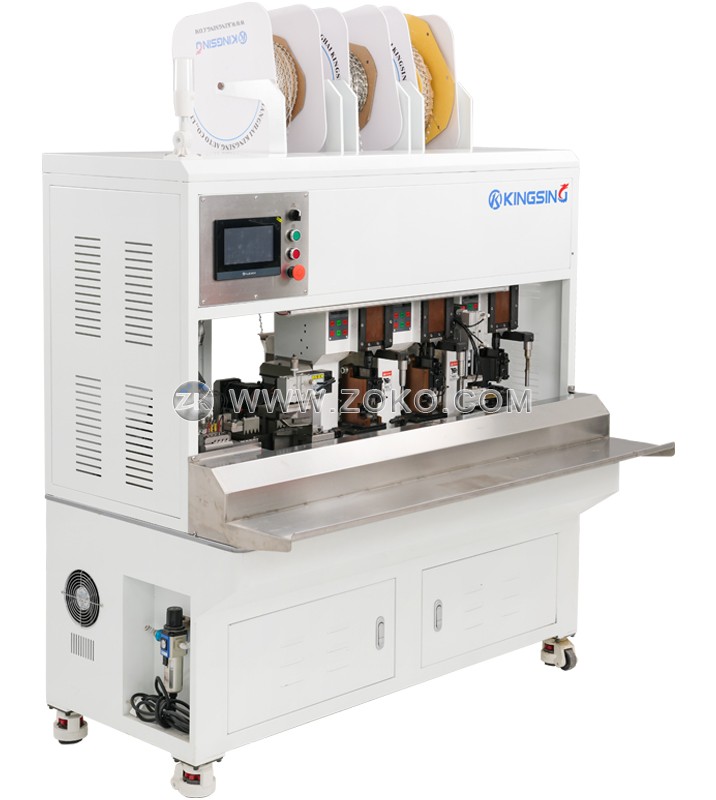

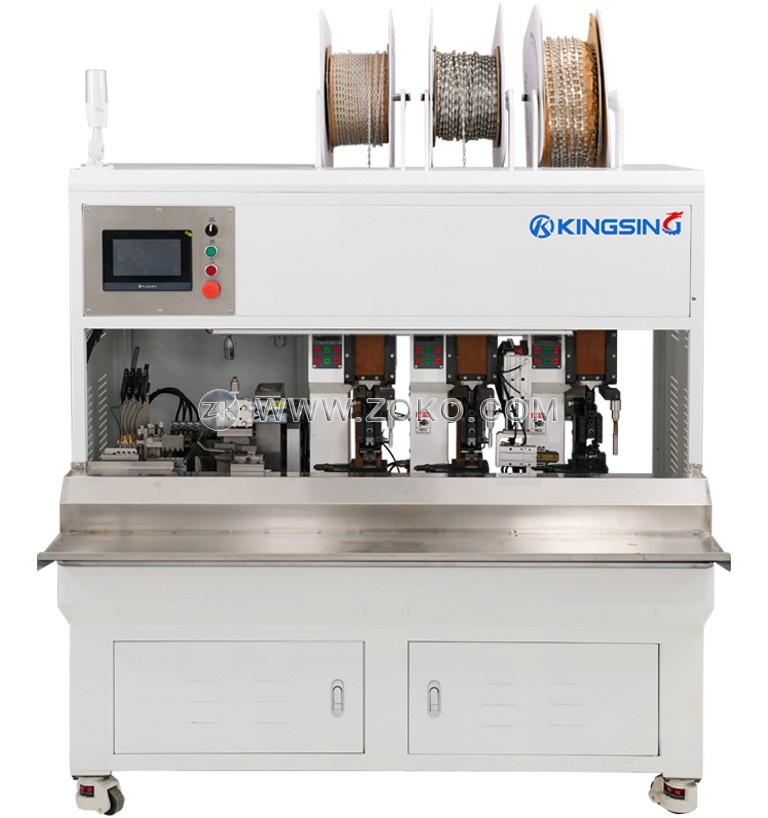

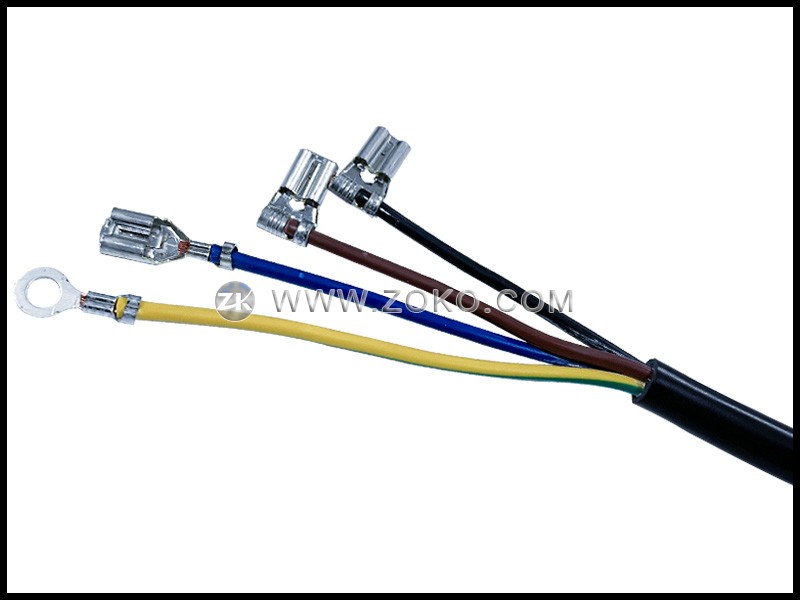

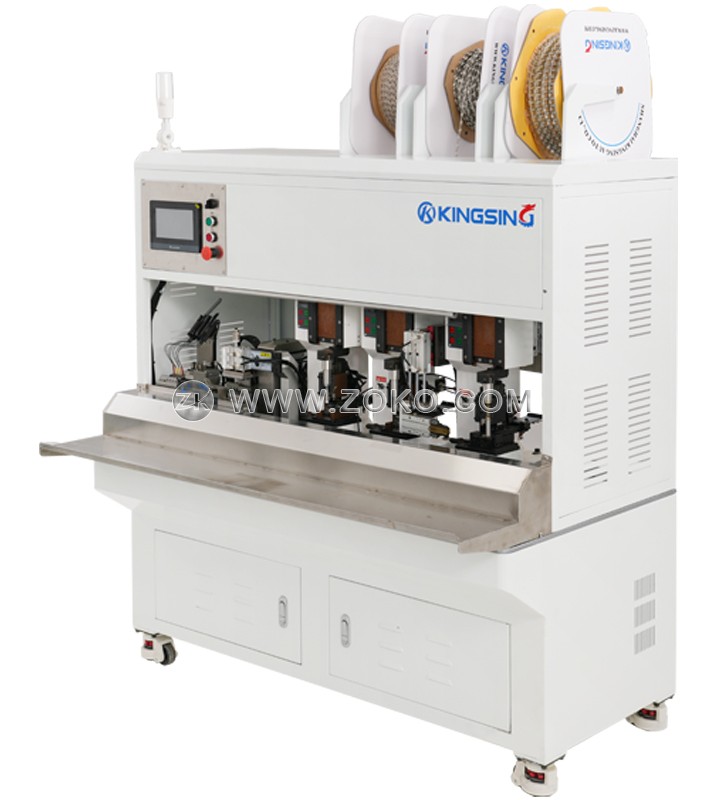

  1. This machine is specially designed for crimping terminals of core wires of sheathed wires, and supports processing 4 core wires at the same time. Each core wire can be cut to different lengths and then stripped and crimped. There are 3 crimping stations on the platform. Therefore, it supports crimping 3 different terminals, and which terminal to crimp each core wire can be freely selected in the program. For example, the same crimping station can be used to crimp the same terminal for all 4 core wires, or 3 different terminals can be crimped for 4 core wires.

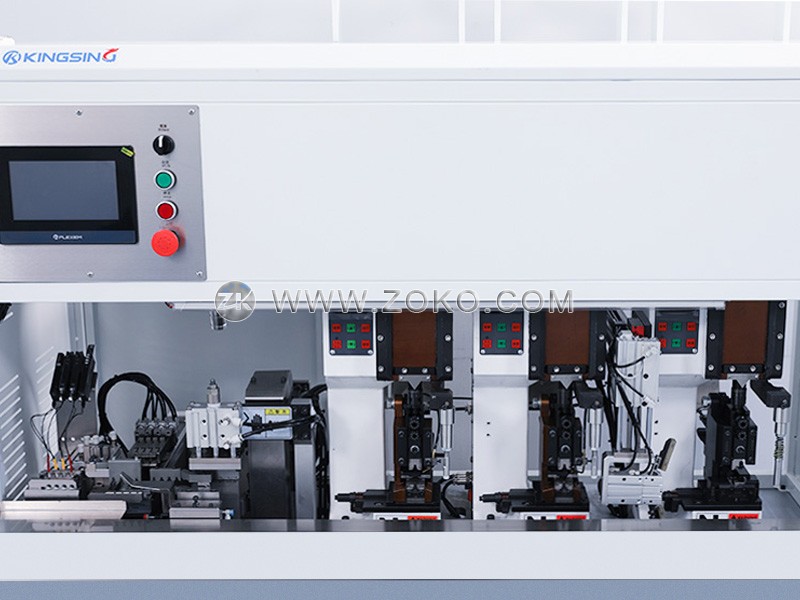

  2. The workmanship of the whole machine is precise, and components such as translation, wire pulling, and wire stripping are all driven by Mitsubishi servo motors. The crimping machine adopts a standard OTP bayonet applicator, which is convenient and quick to replace the applicator, and supports crimping various cross-feed terminals, direct-feed terminals, and flag-shaped terminals. The crimping machine is integrally formed with nodular cast iron, which has strong rigidity and stable crimping height. It can be equipped with a crimping force monitor to monitor the crimping force curve changes of each crimping process in real time. When the crimping force is abnormal, it will automatically alarm and stop.

  3. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the cutting length, stripping length and crimping position of each core wire can be set independently in the program. The program memory function can save the processing parameters of different wire materials in different program numbers, and the corresponding parameters can be called out with one key when switching products.

Download: (1)

Applicable wire: power wire, multi-core sheathed wire

Number of core wires: ≤4 cores (more than 4 cores can be processed in multiple times)

Applicable wire diameter: AWG28~12 (0.1~4mm2)

Cutting length: 0~200mm

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Terminal machine output: 3T

Terminal machine station: 3 (support crimping 3 different terminals, more stations can be customized)

Crimping stroke: 30mm (40mm stroke model can be customized)

Applicable terminals: cross-feed terminal, direct-feed terminal, flag terminal

Air pressure: 0.5~0.7Mpa

Power supply: 220V 50/60Hz

Net weight: 550kg

Dimensions: 1500*970*1700mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
