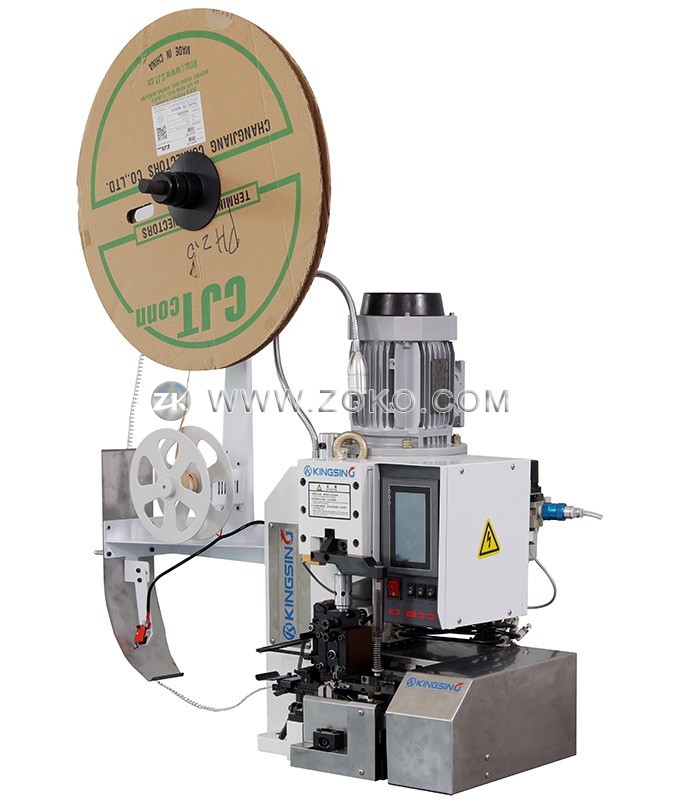

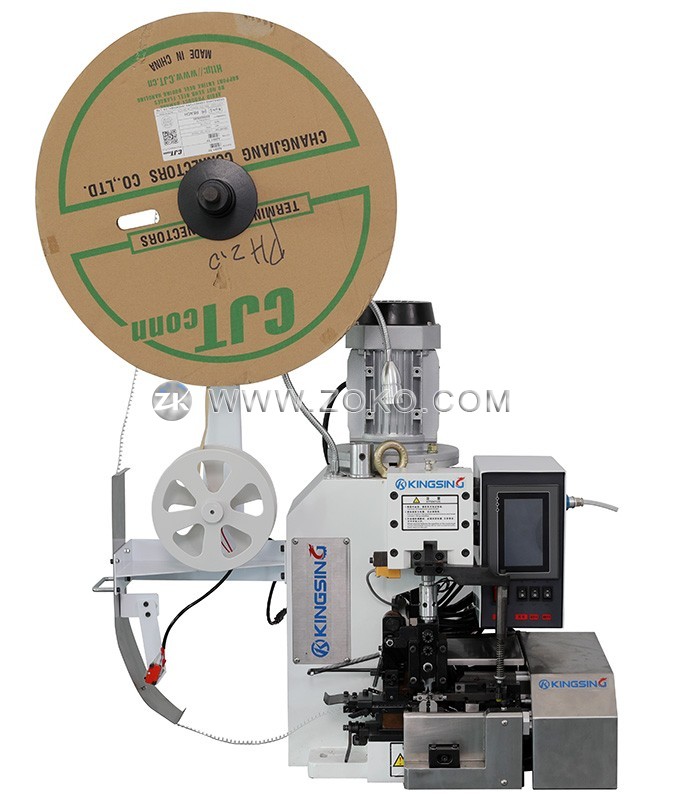

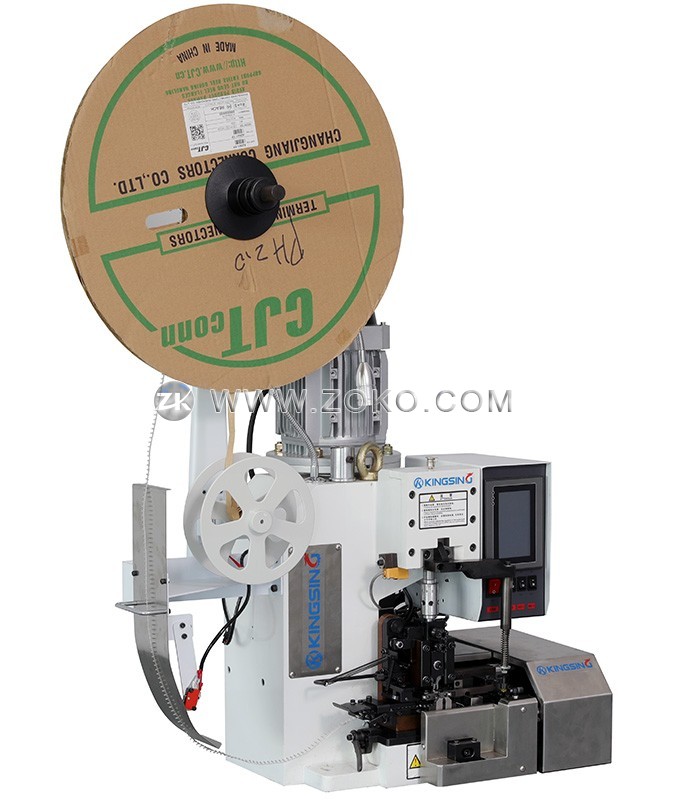

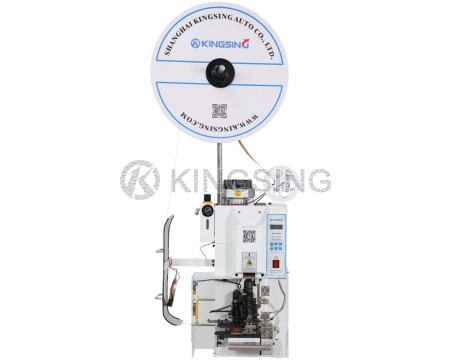

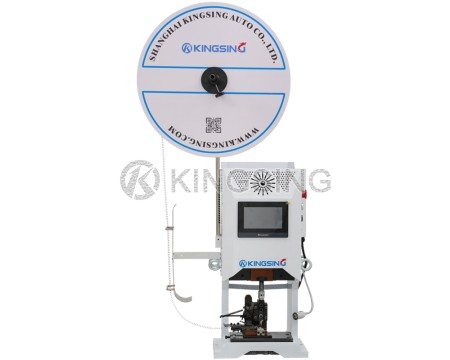

Automatic Induction Type Stripping and Crimping Terminal Machine

  • Model:KS-T909
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This is a semi-automatic wire stripping and crimping terminal machine, the applicator is easy to replace, one machine can crimp a variety of different terminals, just change the corresponding applicator. The wire does not need to be pre-stripped, just put the wire head into the crimping position directly, touch start, no need to step on the foot switch, the wire head is placed in the station and touch the sensor to automatically start the action of stripping and crimping the terminal. Combining the processes of stripping and crimping terminals can effectively reduce labor costs and improve product consistency, especially for stripping and crimping terminals for sheathed core wires.

  2. Color touch screen operation interface, each parameter is easy to adjust. The crimping motor adopts high-precision variable frequency motor, which has the characteristics of low noise, low power consumption, fast speed and high precision. The crimping stroke is 30mm and 40mm optional, and supports the use of various standard crimping applicators, including OTP, Molex, JAM, JST, TE, AMP, Yazaki and other applicators. The bayonet of the applicator can be customized according to the customer's applicator type. This machine can meet various high-end crimping needs. It can be equipped with a crimping force monitor to monitor the change of the crimping force curve in real time and automatically alarm when the crimping force is abnormal.

  3. The stripping action is driven by the cylinder, the cutting depth of the stripping blade can be adjusted precisely, the stripping length is accurate, and the crimping positioning is precise. The waste wire sheath is automatically discharged through the pipeline by vacuum suction, and the terminal backing paper is automatically recycled into rolls through the paper winder, which can keep the working environment clean.

Download: (1)

Applicable wire diameter: AWG32~18

Stripping length: 0~6mm

Tolerance: 0.05-0.1mm

Applicable terminal: Open type cross-feed terminal

Crimp force: 2T

Crimp stroke: 30mm (40mm stroke can be customized)

Crimp motor: variable frequency motor

Start mode: wire touch start or foot switch start

Production efficiency: 1000~2000 pieces/hour

Air pressure: 0.4~0.6Mpa

Power supply: 200~240V 50/60HZ

Power rating: 750W

Net weight: 100Kg

Dimensions: 730×350×700mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
