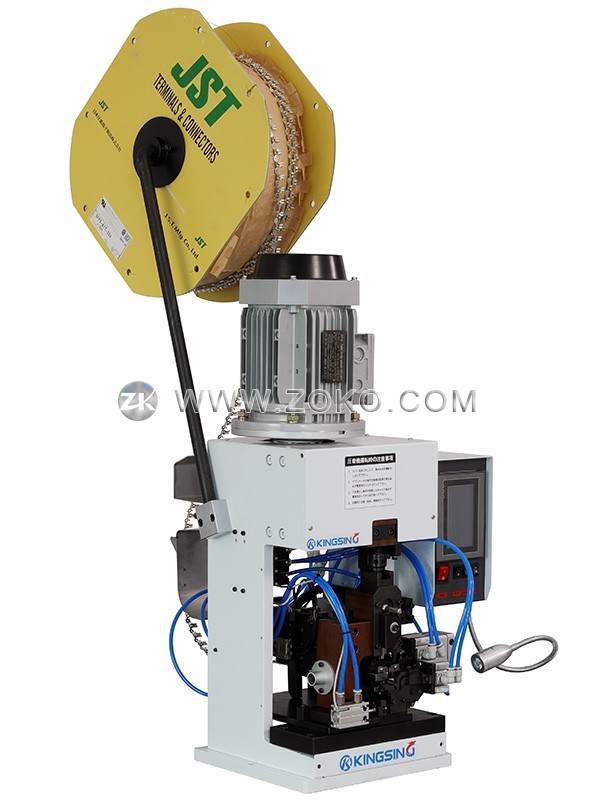

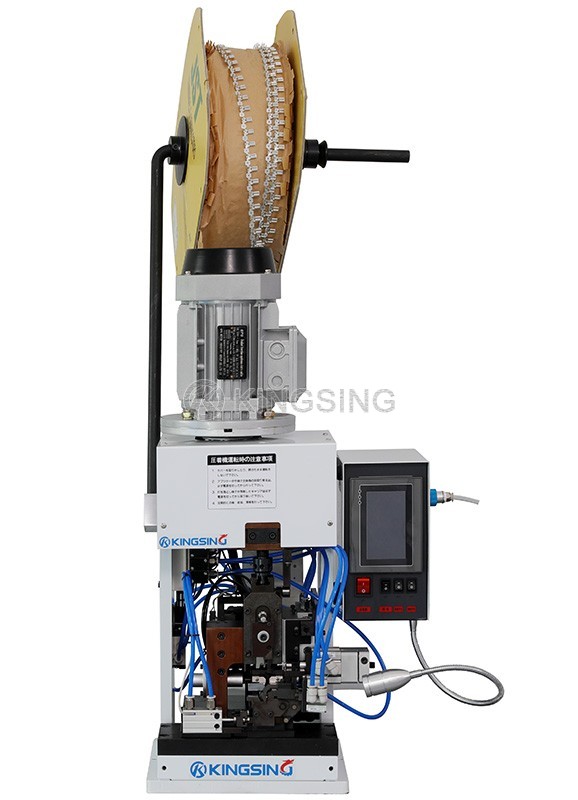

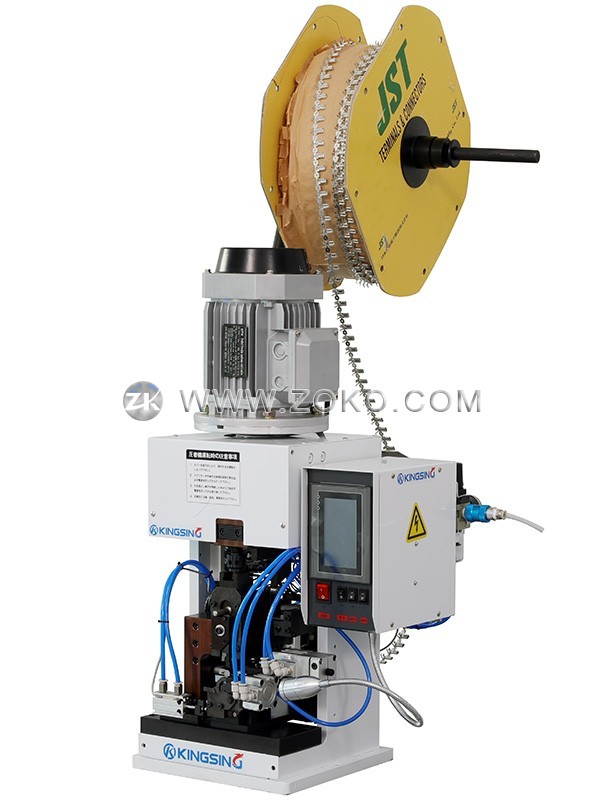

Wire Stripping and Flag Terminal Crimping Machine

  • Model:KS-T906
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

1. This is a flag-shaped terminal stripping and crimping machine, the crimping force can reach 3T, one machine can crimp a variety of different flag-shaped terminals on the tray, only need to replace the corresponding applicator. The wire does not need to be pre-stripped, just put the wire end into the crimping position, and the machine will automatically strip the wire first and then crimp the terminal. Combining the processes of stripping and crimping terminals can effectively reduce labor costs and improve product consistency, especially for the stripping and terminaling of sheathed core wires.

2. This machine adopts frequency conversion motor for precise control, which has the characteristics of low noise, low power consumption, fast speed and high precision. The crimping force can reach 3T, and the wire rod can be processed up to 1.5mm2. The stripping action is driven by the cylinder, the cutting depth of the stripping blade can be adjusted precisely, the stripping length is accurate, and the crimping positioning is precise. The waste wire sheath is automatically discharged through the pipeline by vacuum suction, which can keep the working environment clean.

3. Optional crimping force monitor can monitor the crimping force curve change of each crimping process in real time and compare it with the standard sample. When the crimping force change exceeds the allowable range, it will automatically alarm, which can effectively eliminate defective products, such as broken copper wire, Defects caused by copper wire flying out, abnormal crimping depth, and blade damage can be automatically detected.

Download: (1)

Applicable wire diameter: AWG16~32

Stripping length: 1~10mm

Tolerance: 0.05~0.1mm

Terminal machine output: 3.0T

Applicator stroke: 35mm

Applicable terminal: flag terminal

Production efficiency: 1000~2000 pieces/hour

Air pressure: 0.4~0.6Mpa

Power supply: 200~240V 50/60Hz

Power rating: 1100W

Net weight: 85kg

Dimensions: 500*420*700mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
