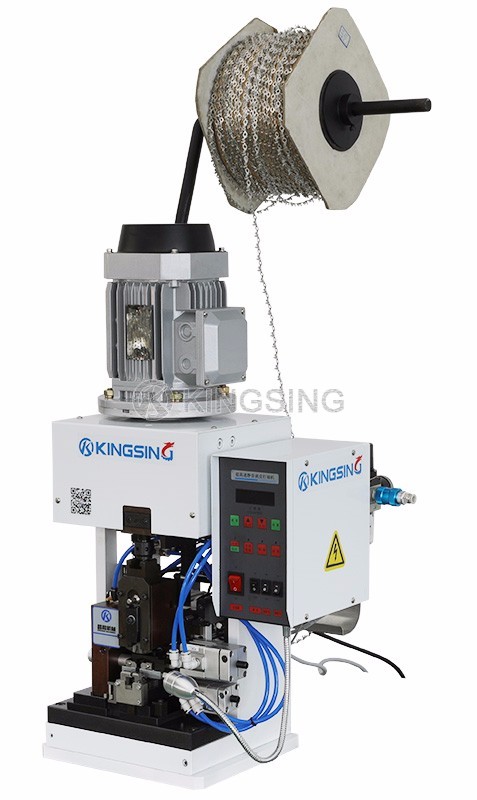

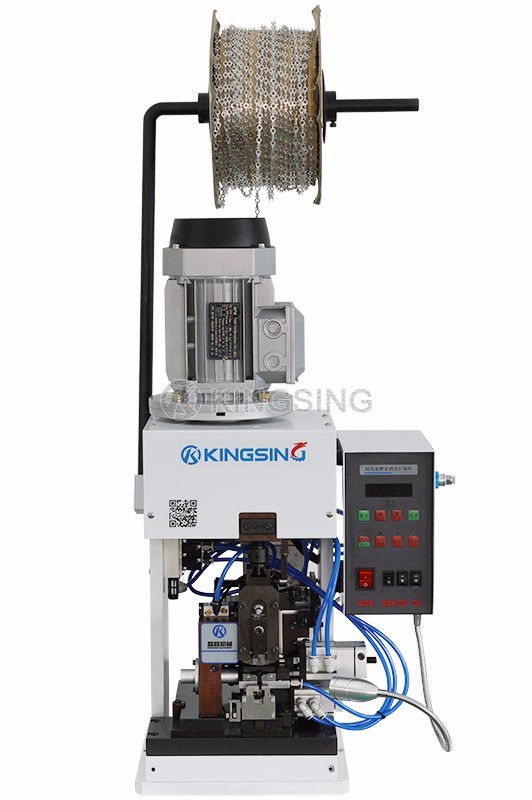

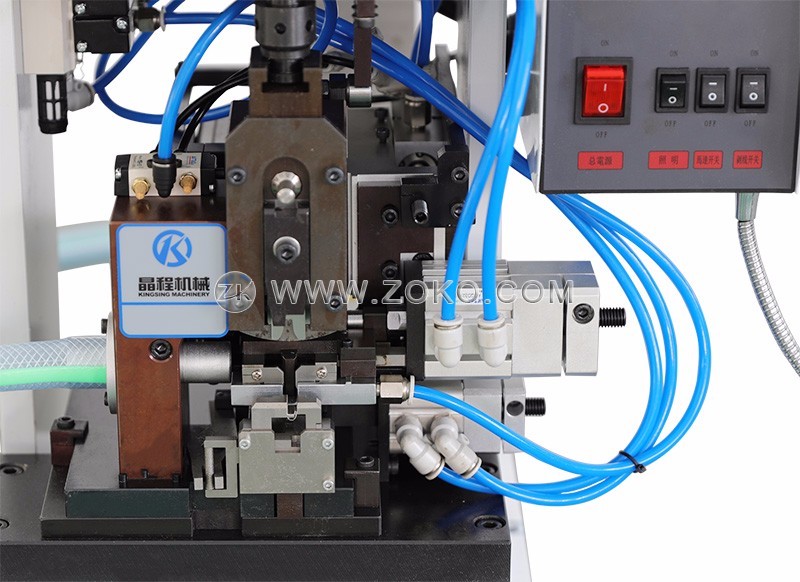

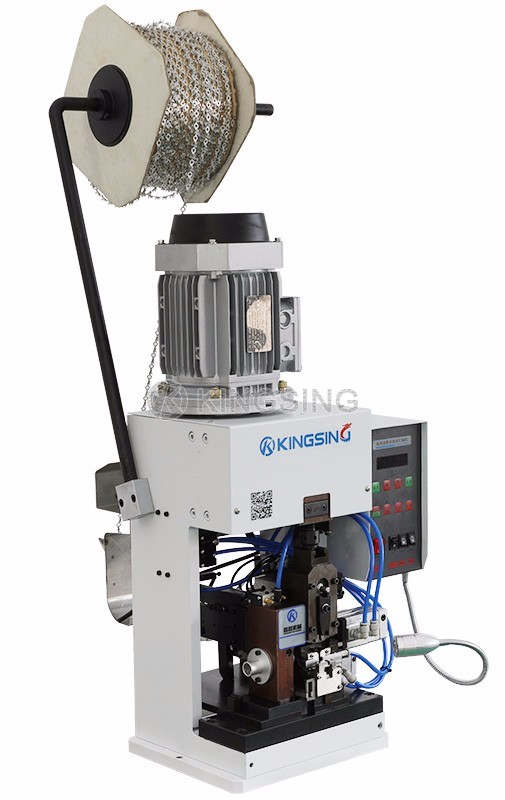

Wire Stripping and Crimping Machine for Straight Feeding Terminal

  • Model：KS-T914
  • Brand：KINGSING
  • Voltage：220V (Can be customized)
  • Function：
  • Price：
Online Inquiry

This semi-automatic wire stripping and crimping machine is especially designed for processing straight feeding terminals in roll, it's mainly used for processing core wires of multi-core cable, there is no need to strip the wire before crimping, this machine can strip wire and crimp terminal at one time.

Download: (1)

Available Wire Size: AWG28 ~ AWG16
Terminal Type: straight feeding terminal in roll
Stripping Length: 1.0 ~ 7.0mm
Crimping Froce: 3Ton
Air Pressure: 0.3 ~ 0.6Mpa
Net. Weight: 80kg
Dimension: 500×350×730mm

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
