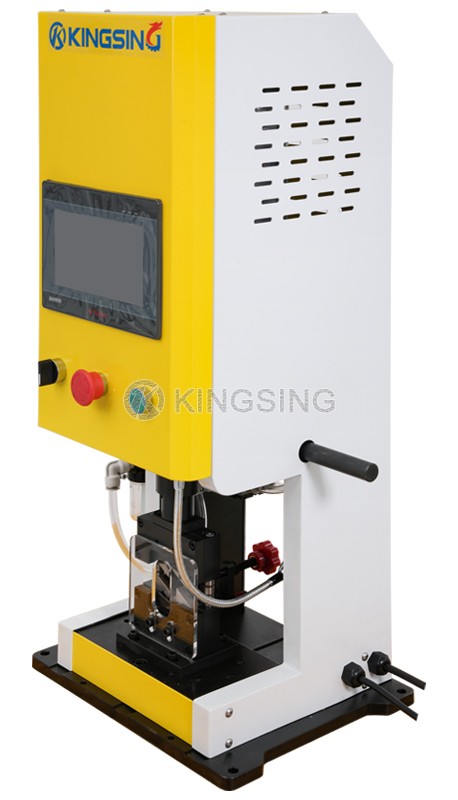

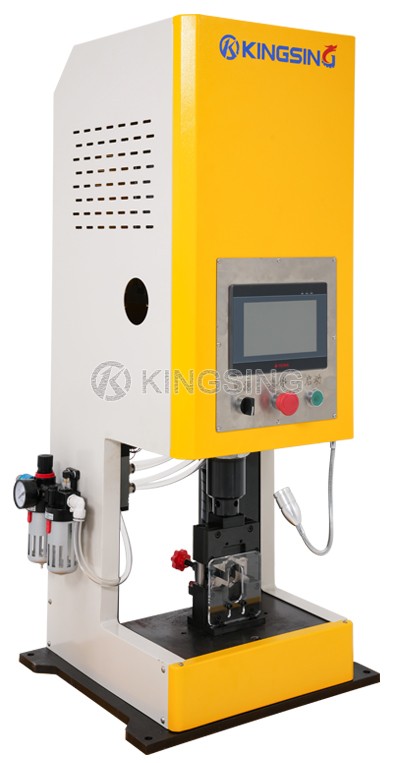

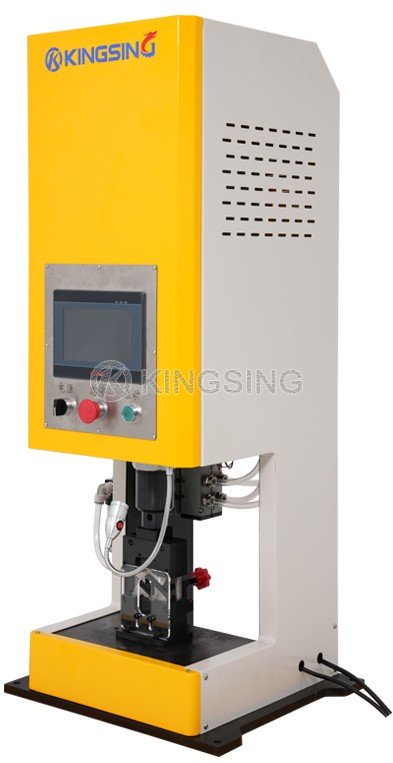

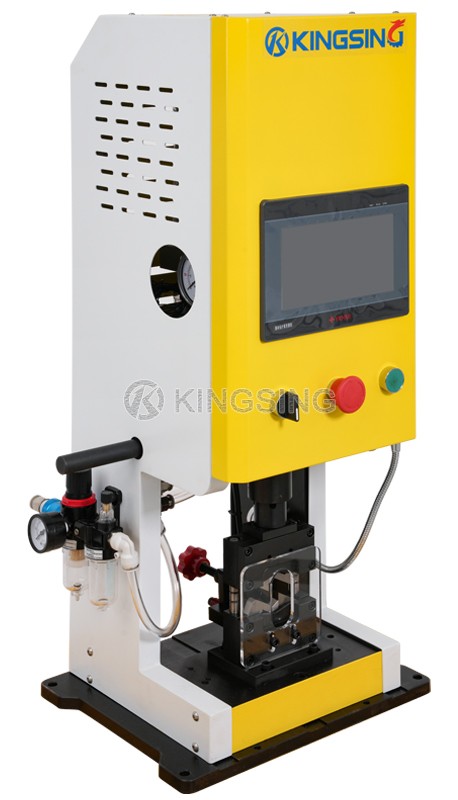

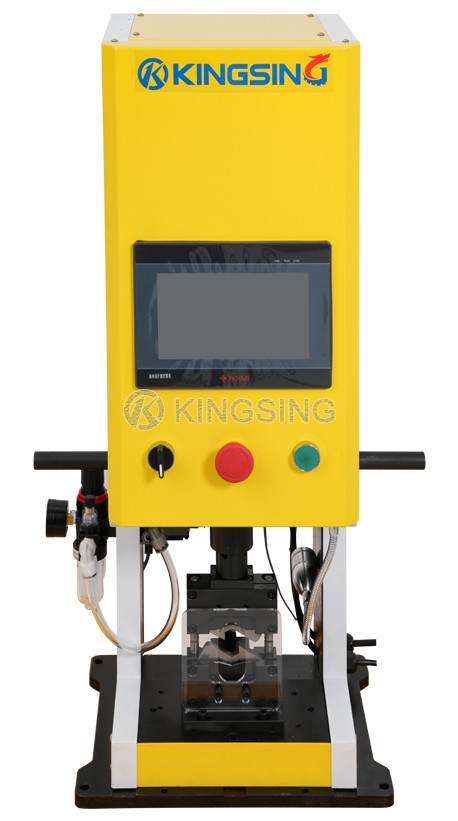

Pneumatic Hydraulic Large Square Crimping Machine

  • Model:KS-T612 series
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This is a pneumatic-hydraulic hybrid drive crimping machine, which can be divided into 3 sub-models according to the crimping force (see technical parameters for details). Compared with the traditional hydraulic crimping machine, its speed is greatly improved,  the hydraulic mechanism only starts working in the final crimping stage, and it only takes about 3 seconds to crimp a terminal.

  2. This machine is suitable for crimping 2.5~180mm2 wires, and is widely used in wire harness processing industries such as new energy and electric vehicle charging piles. Support a variety of applicators, such as: hexagonal applicators, quadrilateral applicators, four-point crimping applicators, pneumatic feeding applicators, B-shaped crimping applicators, etc. One machine can crimp a variety of different terminals, just change the corresponding applicator.

  3. Color touch screen operation interface, crimping height can be set directly in the program, no need to manually adjust the screw. With a program memory function, the crimping parameters of different products can be stored in different program numbers, and the corresponding processing parameters can be called out with one key.

KINGSING

Download: (1) (2)
ModelKS-T612AKS-T612BKS-T612C
Output Force6Ton10Ton20Ton
Crimp Range2.5~50mm22.5~95mm22.5~180mm2
Crimp Stroke30mm40mm40mm
Net Weight70kg140kg340kg
Dimensions450*350*800mm400*400*950mm1900*940*800mm

Production efficiency: 800~1500pcs/hour

Operation interface: 7-inch color touch screen

Start mode: manual button or foot switch

Program memory: 12 groups of programs can be saved

Air pressure: 0.5~0.7Mpa

Power supply: 220V 50/60Hz

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
