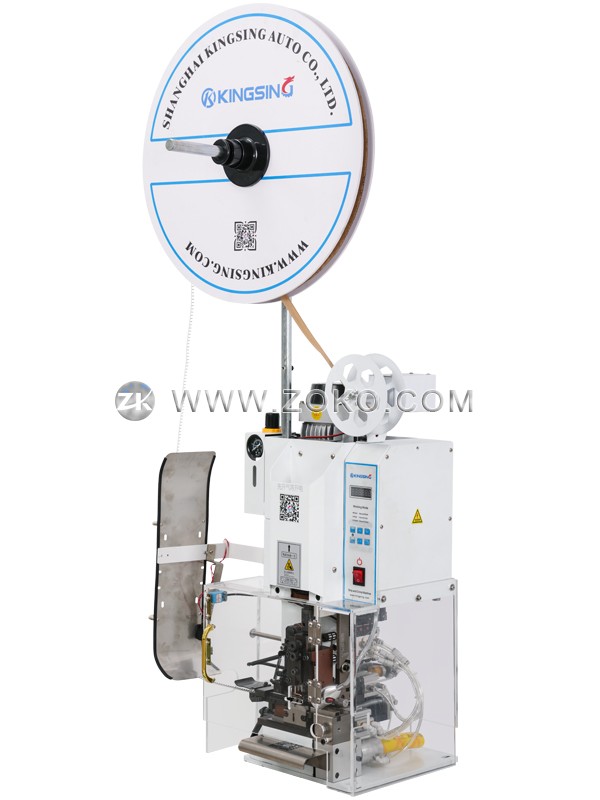

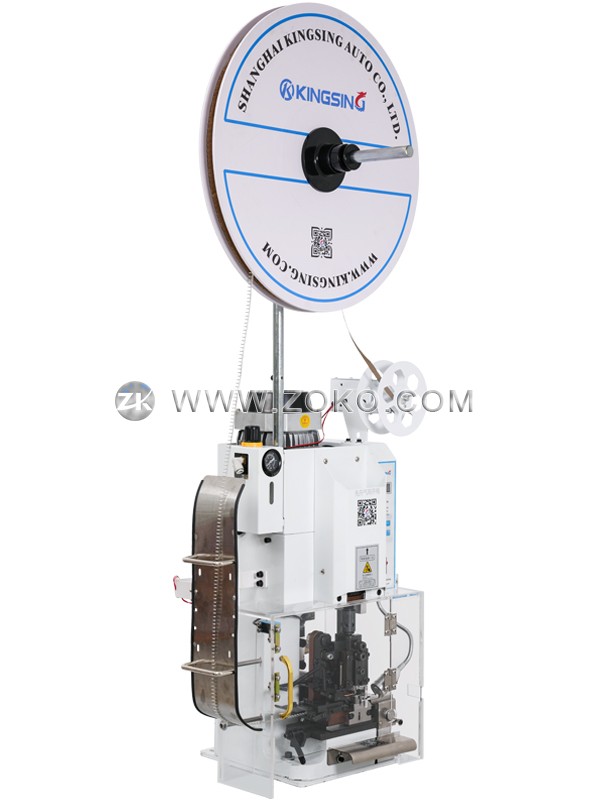

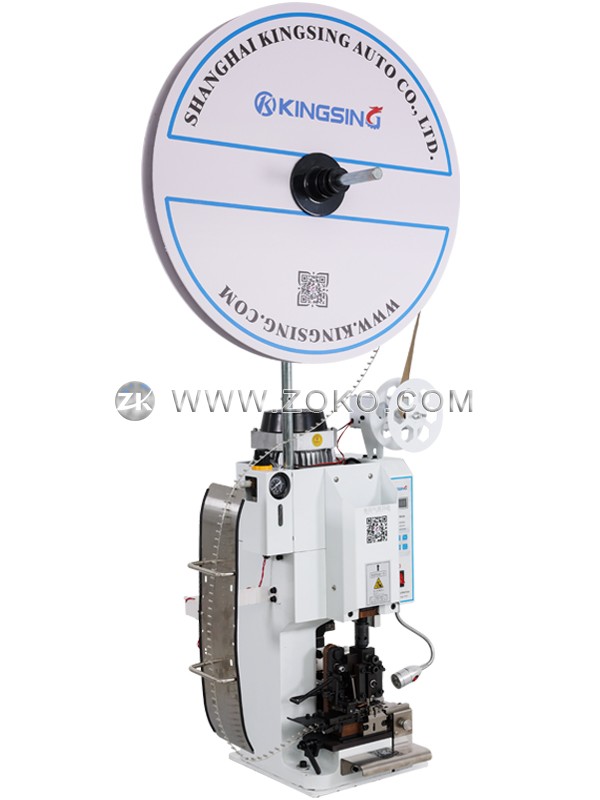

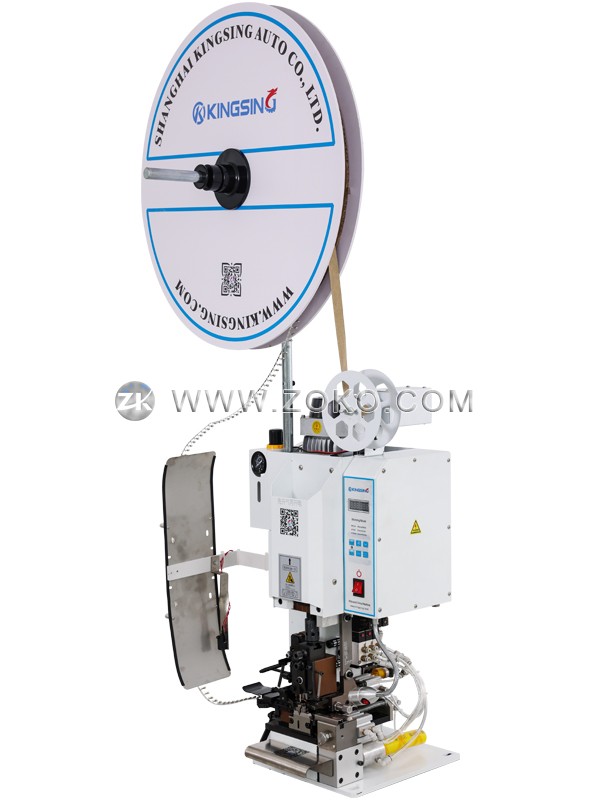

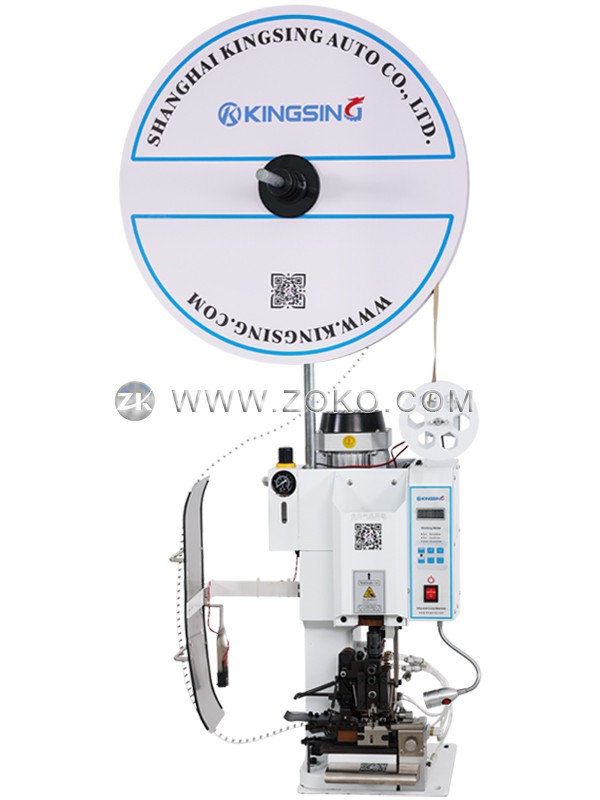

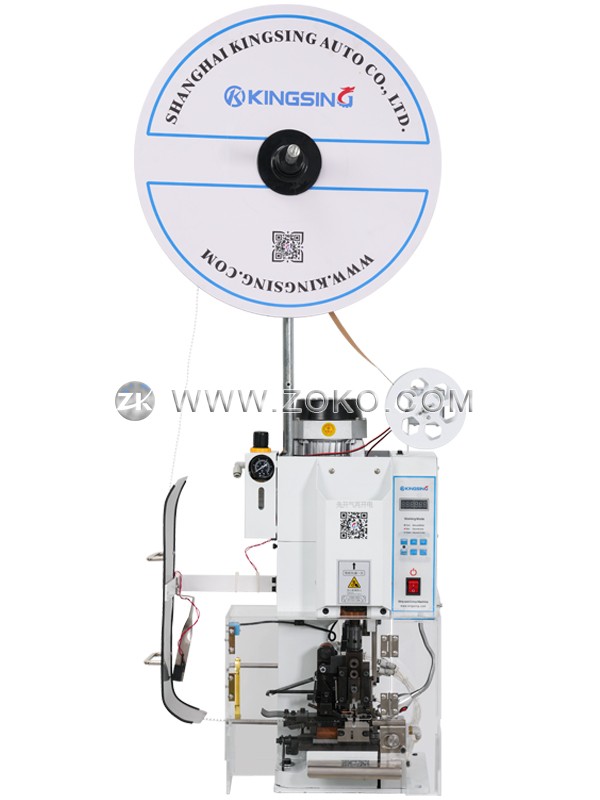

Semi-automatic Wire Stripping and Crimping Machine

  • Model:KS-T9031
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

The wire stripping and crimping machine is especially designed for processing the inner cores of multi conductor cables, it will strip the wire and crimp it automatically, the special designed digital knob allows you to adjust the cutting depth easily, maximum torque, minimum vibration. Using frequency conversion, assured noise-free working environment, energy saving and environment friendly. Compact design allows easy transportation. High precision stripping blades designing, durable wearing parts, makes this machine very popular. With its unique stripping function, the processing is simplified largely, the operator only needs to insert the wire to crimping applicator, stripping and crimping will be done at the same time.

  • Light-weight compact design.

  • No need for an air compressor due to the use of a quiet efficient electric motor.

  • KS-T9031 can strip wire head, and crimp terminal, in one quick operation.

  • KS-T9031 is suitable for crimping different kinds of side feeding terminals.

  • Easy to change the applicator in machine.

  • The stripped waste can be recovered by attaching the terminal strip recovery element.


Download: (1)

Stroke Force:1.5 Ton

Available Wire Size:AWG16~32

Stripping Length:1.0~8.0mm

Stripping Accuracy:±(0.01mm×stripping length)

Stroke:30mm(40mm can be customized)

Speed:1500 pcs/hour

Power Supply:220V 50/60HZ

Air Pressure:0.5~0.8Mpa

Motor Power:0.75KW

Net Weight:86KG

Dimension:345*310*680mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
