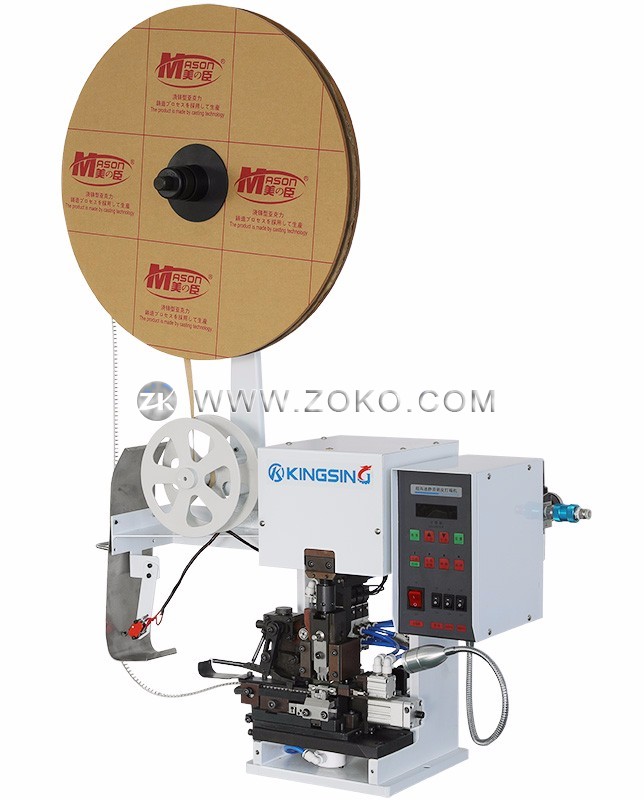

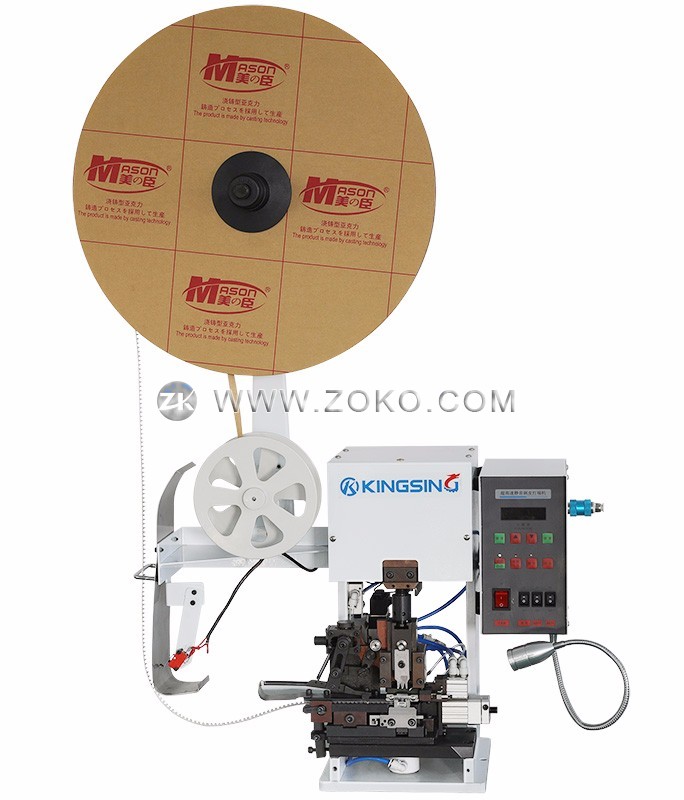

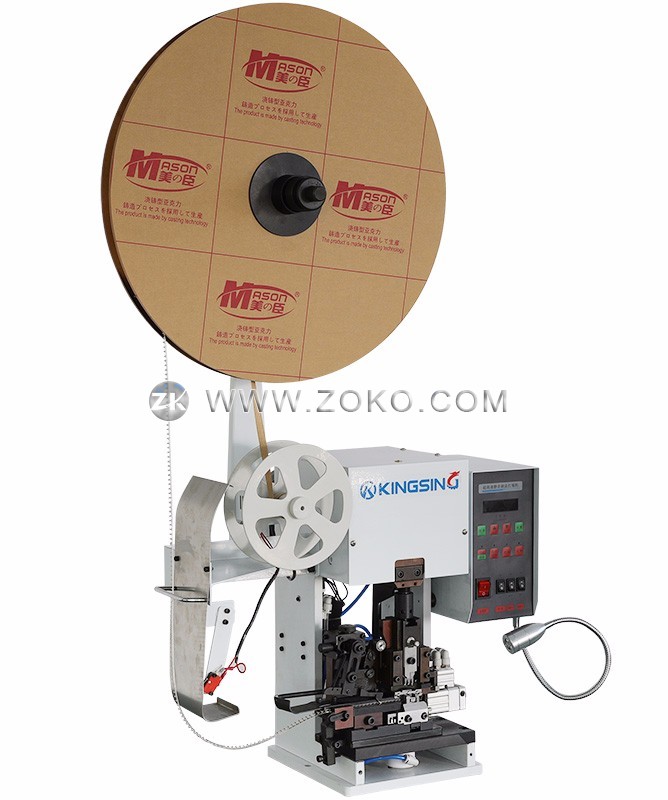

Electric Wire Stripping and Crimping Machine

  • Model:KS-T904
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

1.     This is a semi-automatic wire stripping and crimping machine, which is suitable for crimping various cross-feed terminals. The wire does not need to be stripped in advance, just put the wire head into the crimping position, and the machine will automatically strip the wire first and then crimp the terminal . Combining the stripping and terminaling processes can effectively reduce labor costs and improve product consistency, especially for the stripping and crimping terminals of sheathed core wires.

2.     One machine can crimp a variety of cross-feed terminals, just replace the corresponding crimping blades, and the crimping height and crimping depth are easy to adjust. The crimping applicator of this machine can be replaced quickly, and the crimping applicator can also be replaced directly when crimping various terminals, which is more efficient and saves debugging time.

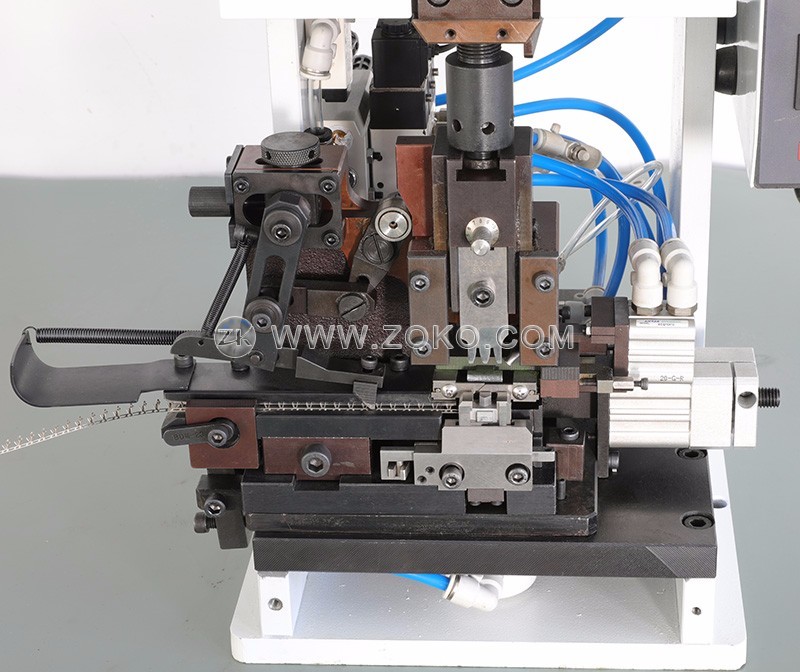

3.     This machine adopts frequency conversion motor for precision control, and has the characteristics of low noise, low power consumption, fast speed and high precision. The stripping action is driven by the cylinder, the cutting depth of the stripping blade can be adjusted precisely, the stripping length is accurate, and the crimping positioning is precise. The waste wire sheath is automatically discharged through the pipeline by vacuum suction, and the terminal backing paper is automatically recycled into rolls through the paper winder, which can keep the working environment clean.

Download: (1)

Applicable wire diameter: AWG18~32

Stripping length: 1~10mm

Tolerance: 0.05~0.1mm

Terminal machine output: 1.5T (2.0T is optional)

Applicator stroke: 30mm

Opening height: 215mm

Applicable terminal: cross feed terminal

Production efficiency: 1000~2000 pieces/hour

Air pressure: 0.4~0.6Mpa

Power supply: 200~240V 50/60Hz

Power rating: 400W

Net weight: 50kg

Dimensions: 400*420*460mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
