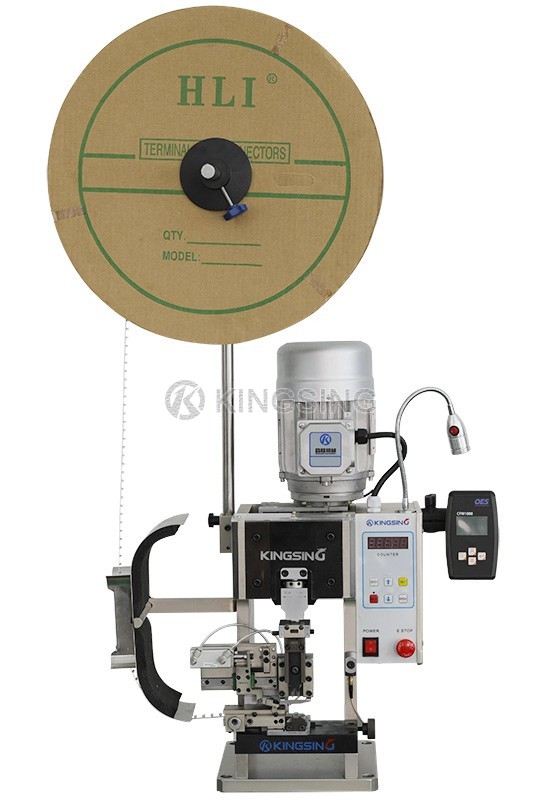

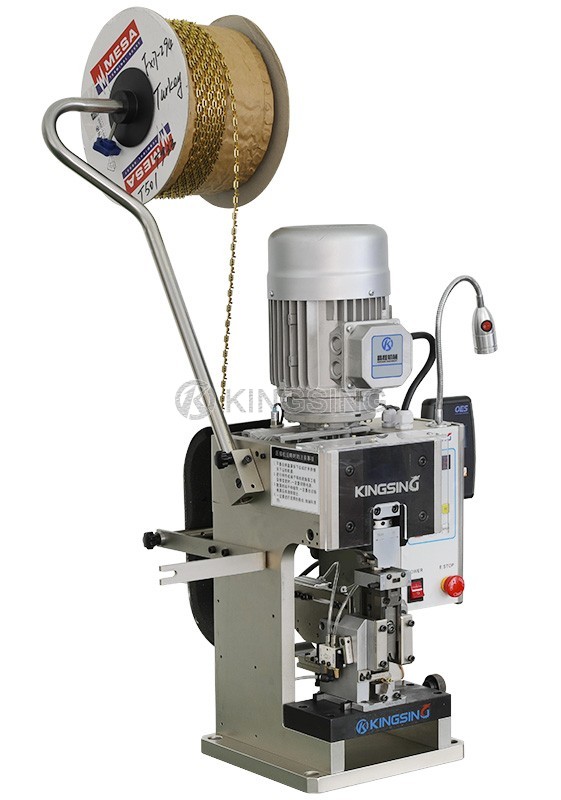

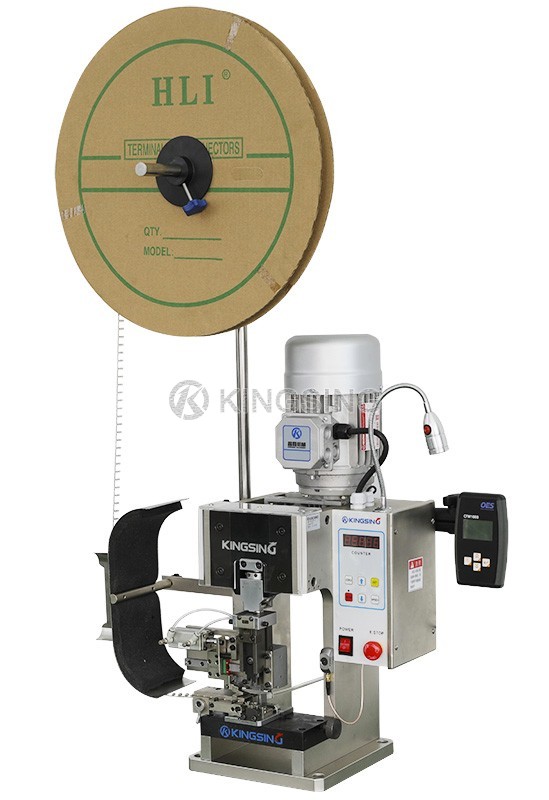

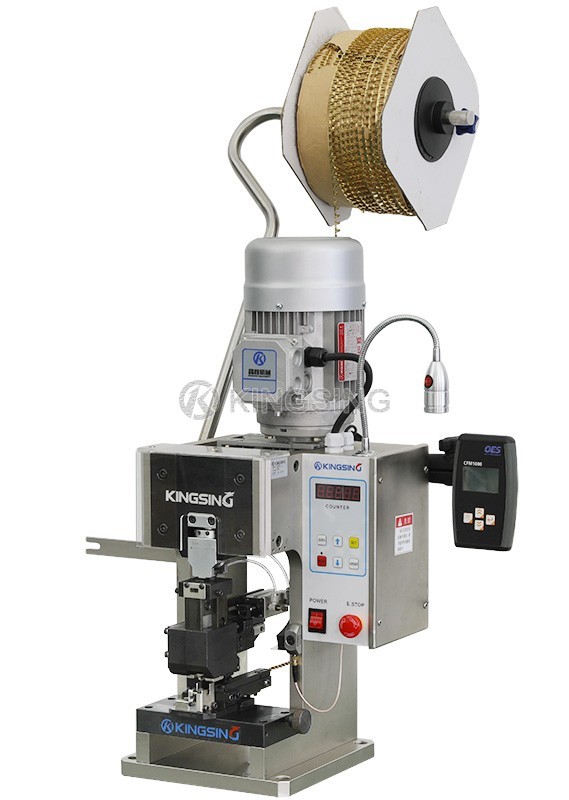

Terminal Crimping Machine

  • Model:KS-T5222
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

KS-T5222 series terminal crimping machines are high speed and adopt advanced frequency convert technology, with accurate positioning, and easy to operate.

The noise is smaller and more electricity will be saved than ordinary crimping machine.

It is more convenient and quicker to change the cassette applicators.

Download: (1) (2) (3) (4)

Stroke Force

2.0 Ton

Speed

1500 pcs/hour

Available Terminal

Side-feed Terminals Straight-feed Terminals

Shut Height

135.78 mm

Available Applicators

40mm Stroke European, Korean Applicator

Air Pressure

0.50.8MPa

Stroke

40mm

Adjusting Value

6mm

Motor Power

0.75KW

Power Supply

220V 50/60 HZ

Net Weight

75 KG

Dimension

325×280×690 mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
