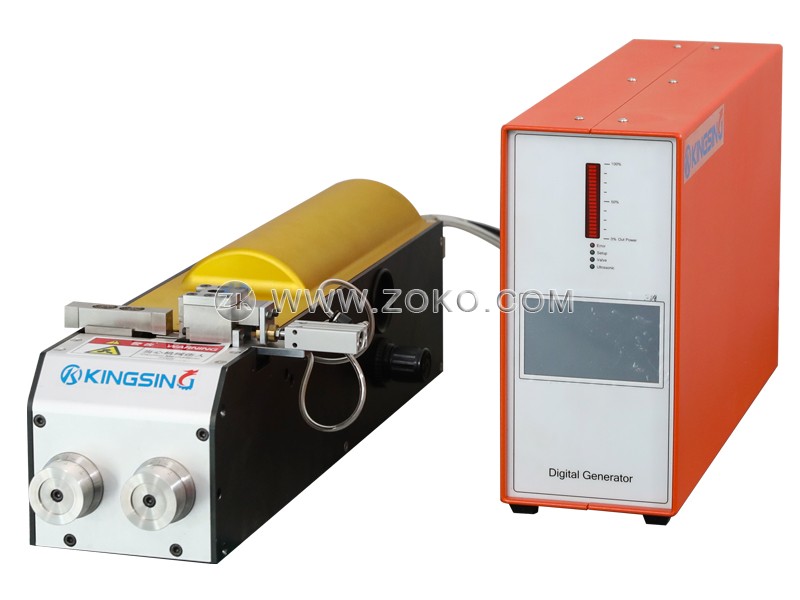

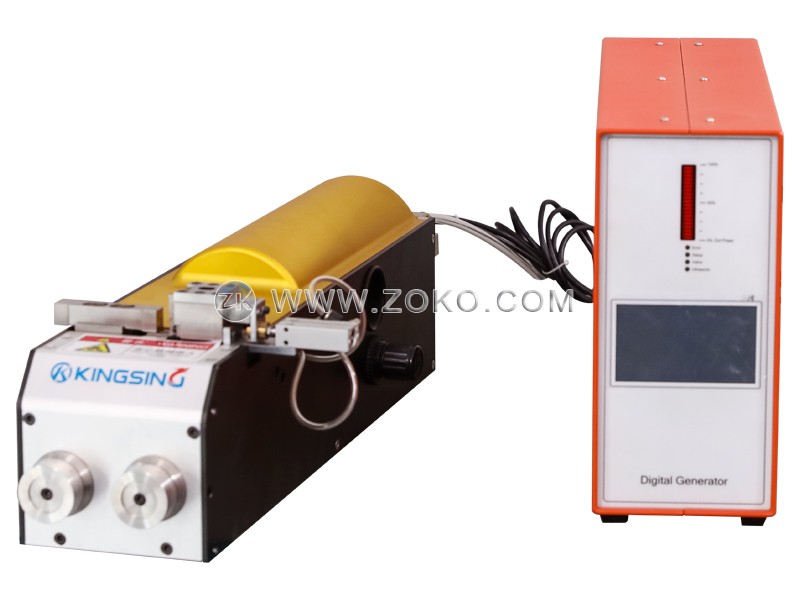

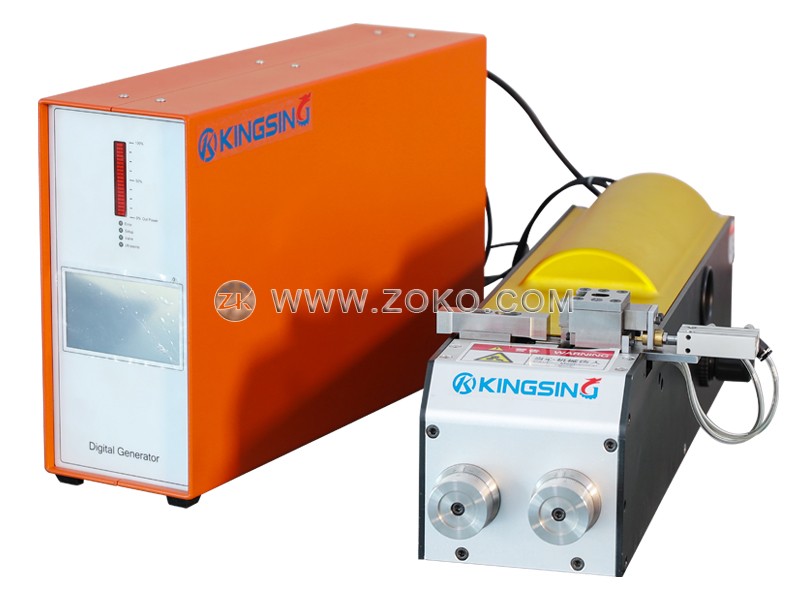

Ultrasonic wire welding machine

  • Model:KS-U1
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

The ultrasonic wire welding machine is on the principle of ultrasound, the microprocessor automatically controls the frequency tuning, and simultaneously detects the current and phase frequency.

The circuit is equipped with a double automatic protection device for frequency offset and excessive current. The equipment is stable and the energy conversion and utilization efficiency is high.

Download: (1)

Working Mode: pneumatic

Air Supply:0.2-0.7Mpa

Power Supply: 220V/50HZ

Frequency: 20KHZ

Power Rating:2000W

Weight:55KG

Dimension:490 x 460 x450mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
