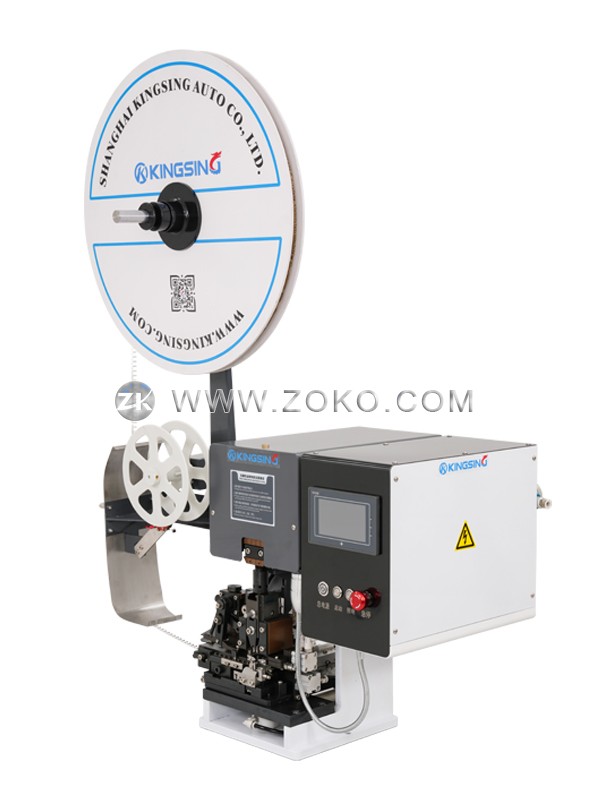

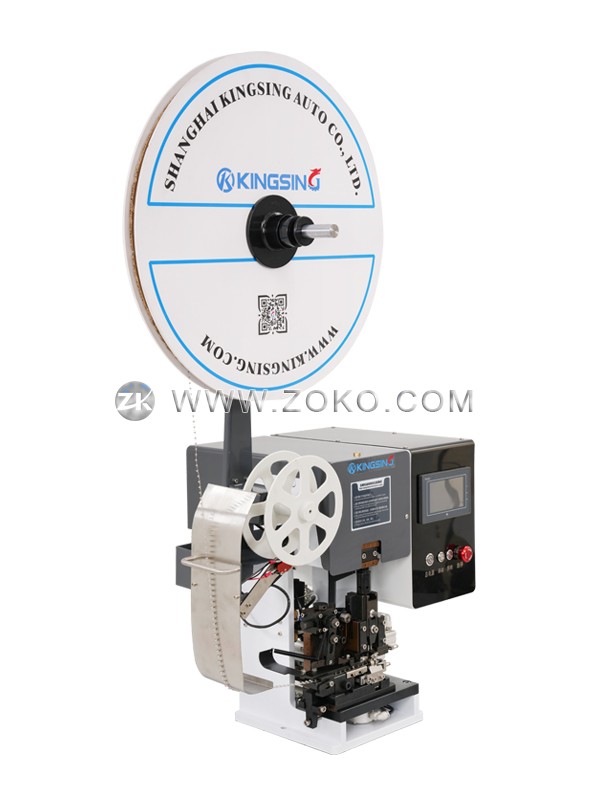

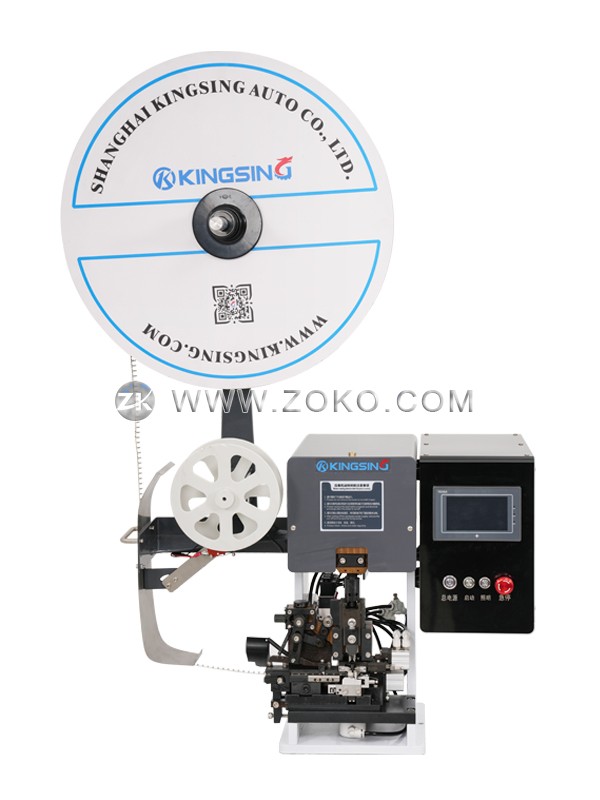

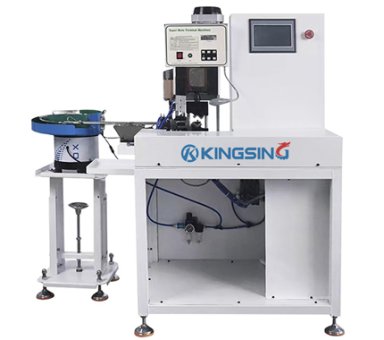

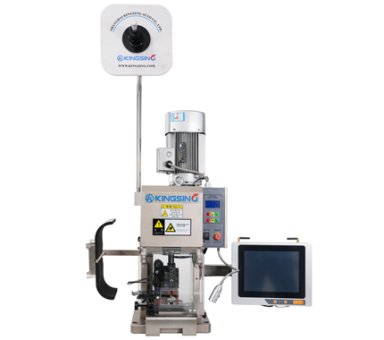

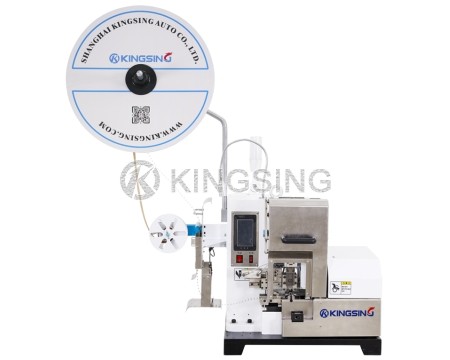

Servo Type Wire Stripping & Crimping Machine

  • Model:KS-T152S
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This is a semi-automatic servo-type wire stripping and crimping terminal machine, which is suitable for crimping various cross-feed terminals. The crimping process is precisely controlled by Mitsubishi servo motors. The wire does not need to be pre-stripped, just put the wire end into the crimping position, and the machine will automatically strip the wire first and then crimp the terminal. Combining the processes of stripping and crimping terminals can effectively reduce labor costs and improve product consistency, especially for stripping and crimping terminals for sheathed core wires.

  2. One machine can crimp a variety of cross-feed terminals, just replace the corresponding crimping blades, and the crimping height and crimping depth are easy to adjust. The crimping die of this machine can be replaced quickly, and the crimping die can also be replaced directly when crimping various terminals, which is more efficient and saves debugging time.

  3. The stripping action is driven by the cylinder, the cutting depth of the stripping blade can be adjusted precisely, the stripping length is accurate, and the crimping positioning is precise. The waste wire sheath is automatically discharged through the pipeline by vacuum suction, and the terminal backing paper is automatically recycled into rolls through the paper winder, which can keep the working environment clean.

Download: (1)

Applicable wire diameter: AWG18~32

Stripping length: 1~10mm

Tolerance: 0.05~0.1mm

Terminal machine output: 2.0T

Applicator stroke: 30mm

Opening height: 215mm

Applicable terminal: cross feed terminal

Crimp motor: Mitsubishi servo motor

Production efficiency: 1000~2000 pieces/hour

Air pressure: 0.4~0.6Mpa

Power supply: 200~240V 50/60Hz

Power rating: 750W

Net weight: 70kg

Dimensions: 500*500*550mm


Optional features:

1.Wire end cutting: Automatically cut the wire ends, the stripping length is more accurate, and the error of manual unwinding is eliminated.

2.Inductive start: Inductive start is used instead of foot switch start, and it starts automatically after the wire is put in place.

3.Two-wire crimping: designed for 2-core sheathed wires, some small terminals can crimp two terminals at one time.

4.Special terminals: such as double strip terminals, terminals with strips in the middle, etc. can be customized by non-standard.

5.Crimping force monitoring: monitor the crimping force curve of each crimping process in real time, and automatically alarm when the crimping force is abnormal.


Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
