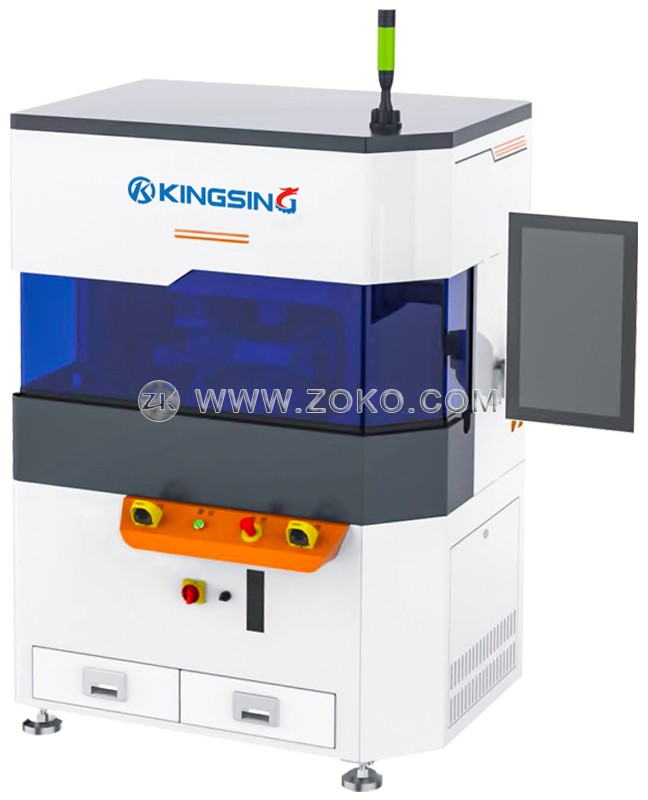

Ultrasonic Terminal Welding Machine

  • Model:KS-U120
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  • Using advanced ultrasonic welding technology;

  • Controlled by industrial computers;

  • Password protection and parameter storage;

  • Automated welding error prevention and quality monitoring;

  • Prevent empty welding;

  • Easy to use;

  • Low maintenance cost;

  • Data storage;

Download: (1)

Welding range: 16mm2~120mm2 copper wire, aluminum wire, copper and aluminum terminals

Production efficiency: 1.2 seconds/time (depending on the welding sqmm)

Ultrasonic frequency: 20KHz

Power rating: 12000W

Power supply: AC380V 50Hz

Weight: 1200KG

Dimension: 2060*1010*2300mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
