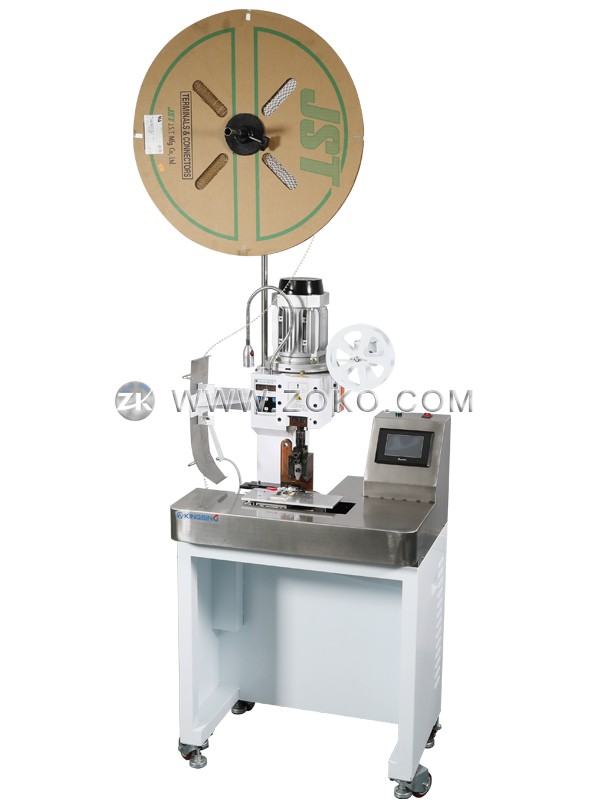

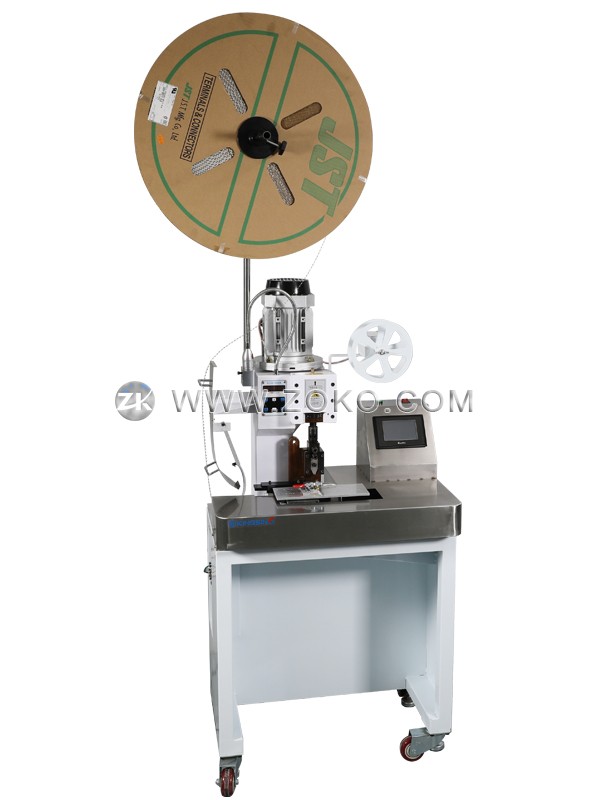

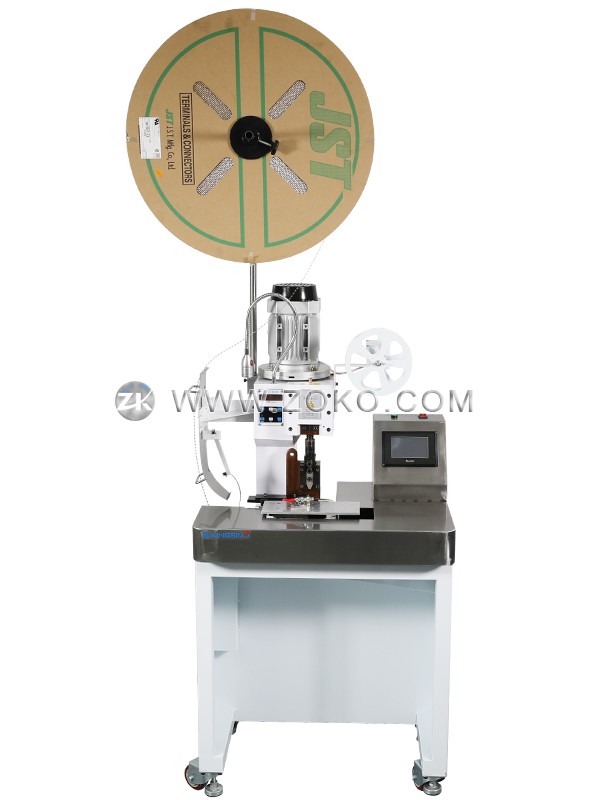

Film Panel FFC Crimping Machine

  • Model:KS-T5582
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

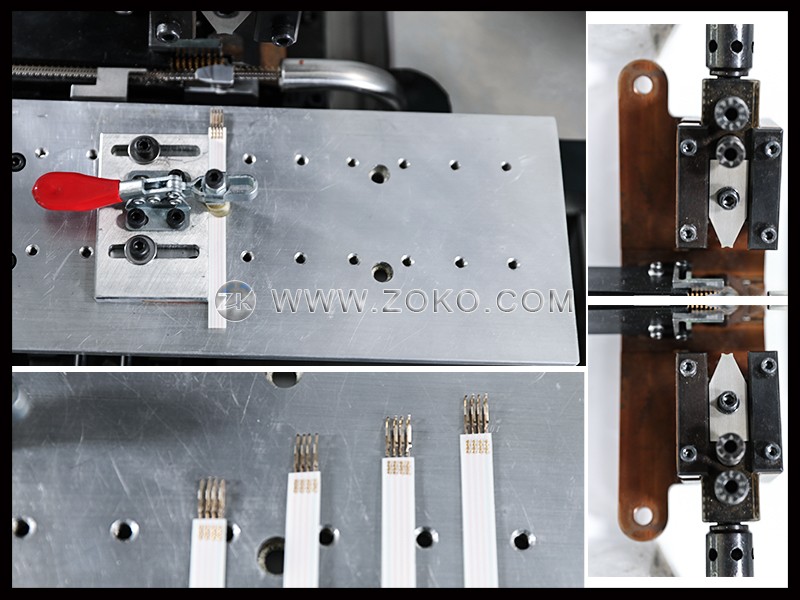

This is an FFC flexible cable terminal machine. The operator only needs to put the flat cable into the positioning fixture, and the machine can automatically send the wire to the crimping position and crimp the terminal. Color touch screen operation interface, the pin number of the cable and the position of the crimping can be set in the program. One machine can process a variety of different products, and the crimping applicator adopts a standard OTP bayonet, so it is convenient and quick to change the applicator.

Download: (1)

Applicable wire: FFC flat cable, membrane switch panel

Pitch type: 1.27mm, 2.54mm, 5.08mm

Crimp times: up to 30Pin (depending on the pitch type)

Terminal machine output: 1.5T

Crimp stroke: 30mm

Operation interface: color touch screen

Air pressure: 0.4~0.6Mpa

Power supply: 220V 50/60Hz

Net weight: 115kg

Dimensions: 660*470*1400mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
