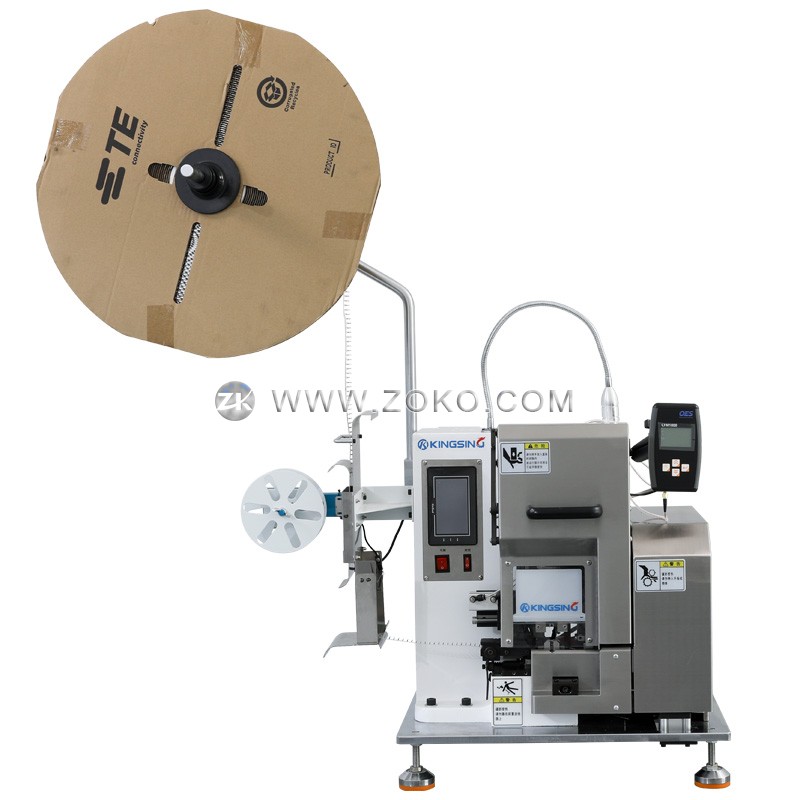

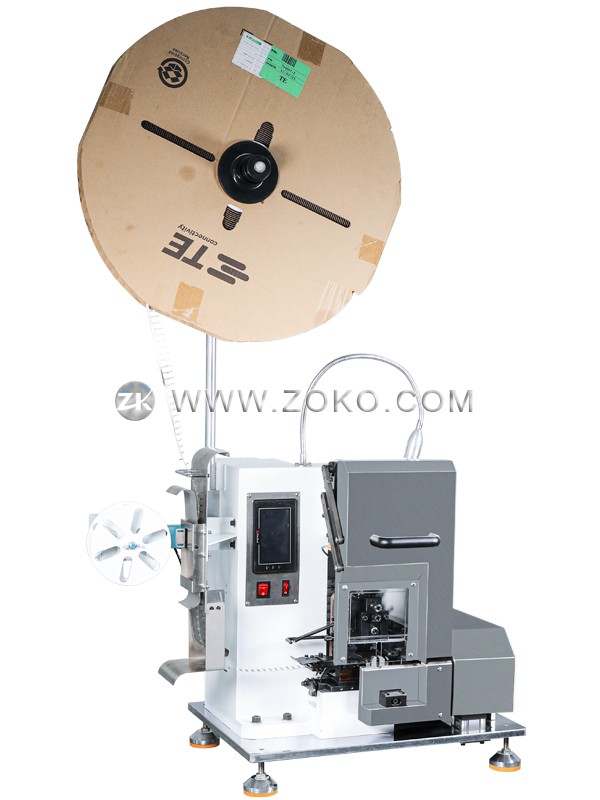

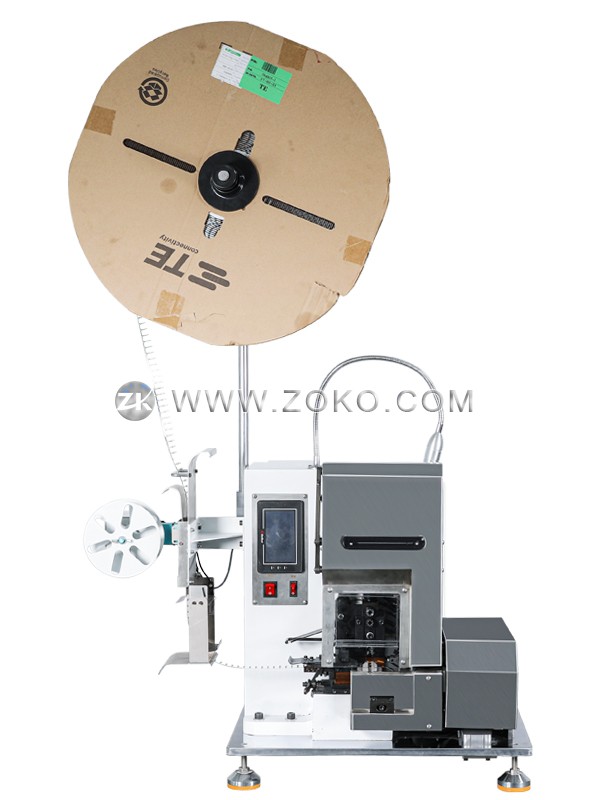

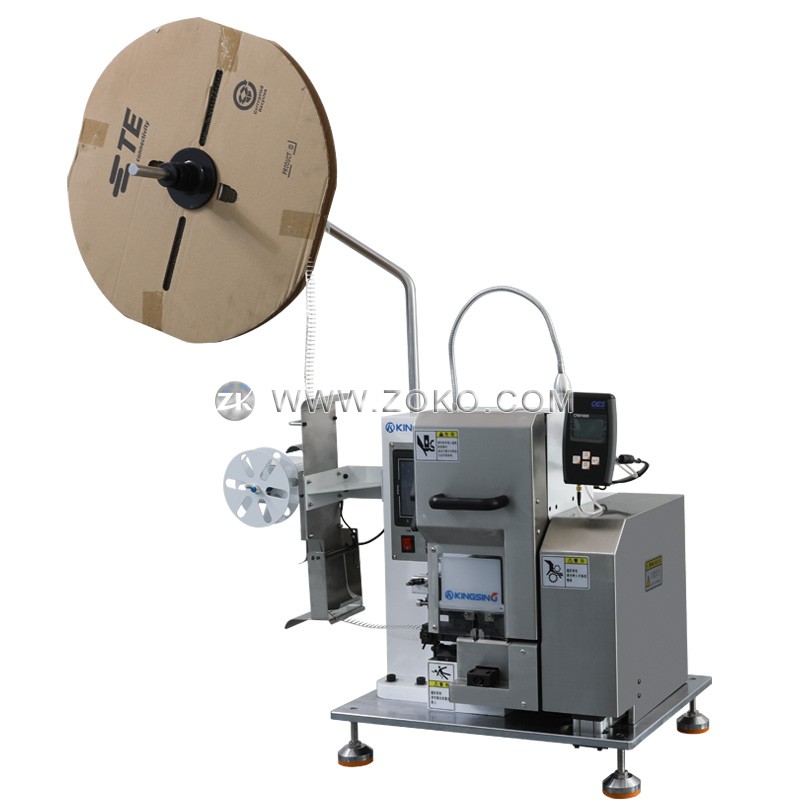

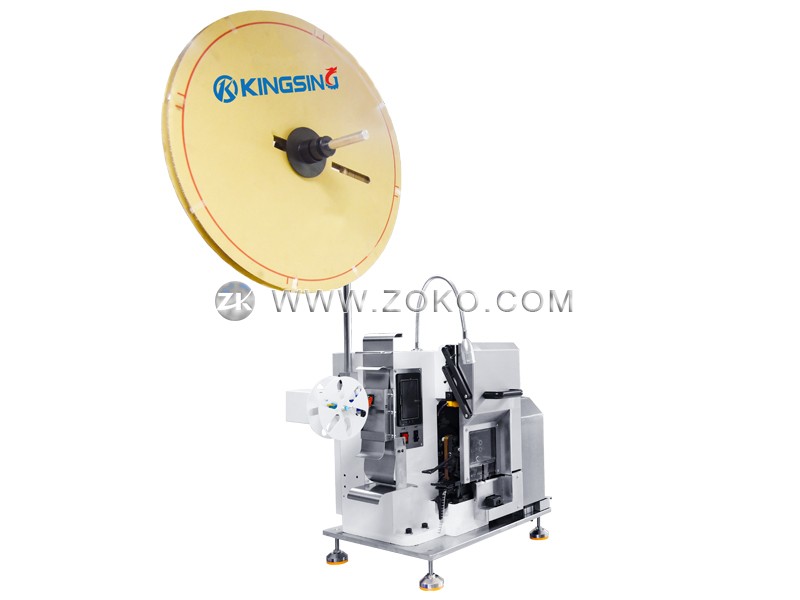

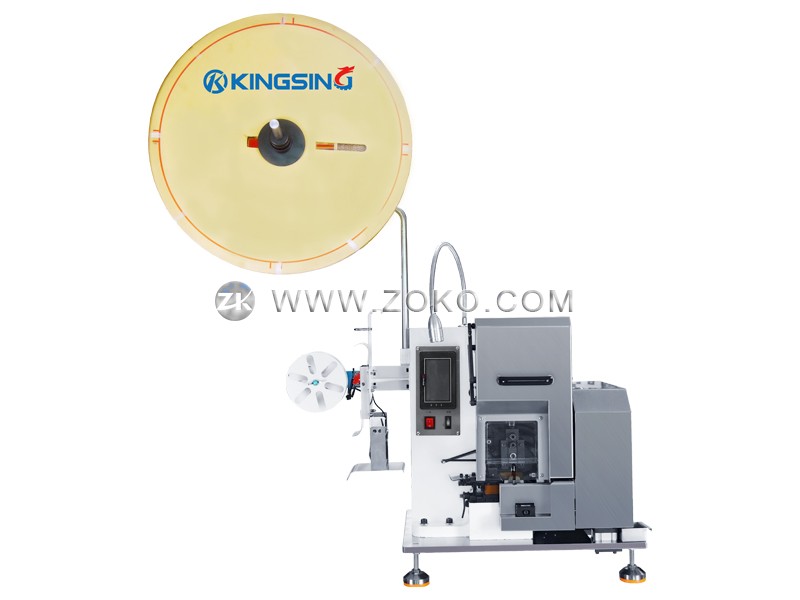

Semi-automatic Wire Stripping Crimping Machine

  • Model:KS-T9091
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

Wire Stripping and Crimping Machine KS-T9091 belongs to customized modern multi-functional machine which combines wire stripping, crimping function and terminal crimping pressure detection. Modularized structure design and mature controlling system have this machine achieved convenient and simplistic adjustment when some unexpected issues happen. Besides, a wide variety of crimping applicators are applicable to be used in this machine, including Molex applicator, JAM applicator, TE applicator, AMP applicator, Yazaki applicator, etc. Moreover, usage of servo motor and professional electrical and gas circuit design shift this machine towards high-efficient and modern production mode.

  • Stable performance and low failures;

  • Reasonable space design and centralized functions;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Precision parts are driven by servo motor;

  • A wide range of applicators can be applied in terminal crimping machine;

  • Modularized structure design and mature controlling system;

  • It combines wire stripping, crimping function and terminal crimping pressure detection;

  • Terminal detection, air pressure detection, and other machine failures can be displayed and controlled in the main screen;

  • Molex applicator, JAM applicator, TE applicator, AMP applicator, Yazaki applicator and other applicators can be applied in this machine in general;

  • Usage of servo motor and professional electrical and gas circuit design shift this machine towards high-efficient and modern production mode;

  • Terminal crimping quality could be monitored by professional pressure detection unit. Besides, it is also available for checking maloperation or other issues.

Download: (1) (2)

Applicable Wire: AV、AVS、AVSS、CAVUS、KV、KIV、UL、IV Teflon, Fiber and etc.

Applicable Wire Diameter: AWG32#~AWG20#

Stripping Length: 1-6mm

Cutting Accuracy: 0.05-0.1mm

Position Accuracy: 0.05-0.1mm

Crimping Terminal: Open continuous terminal, Transversal applicator

Crimping Capacity: 2T

Crimping Stroke: 40mm  (30mm can be customized)

Power Rating: 1KW

Power Supply: Single-phase 200-240V 50-60HZ

Air Pressure: 0.5-0.6Mpa

Weight: 150Kg

Dimension: W550*L440*H600mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
