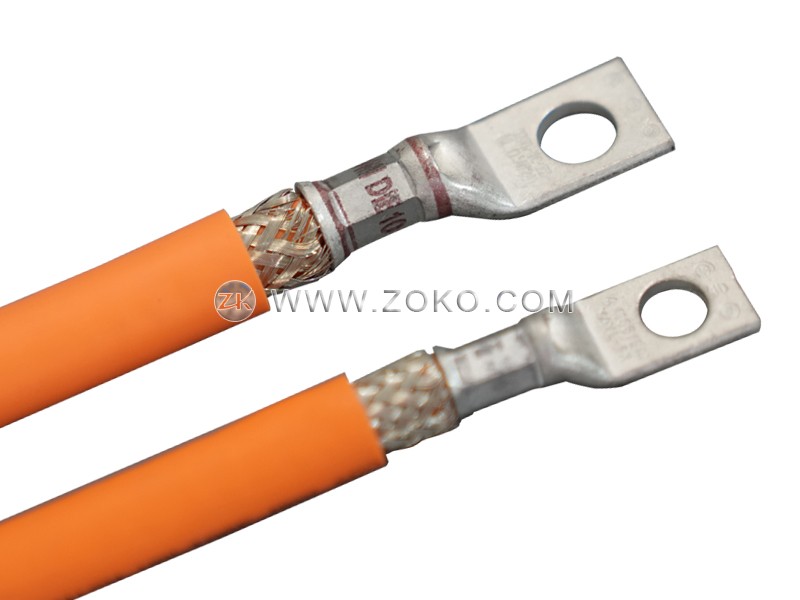

  3. Cable Lug Crimp Machine

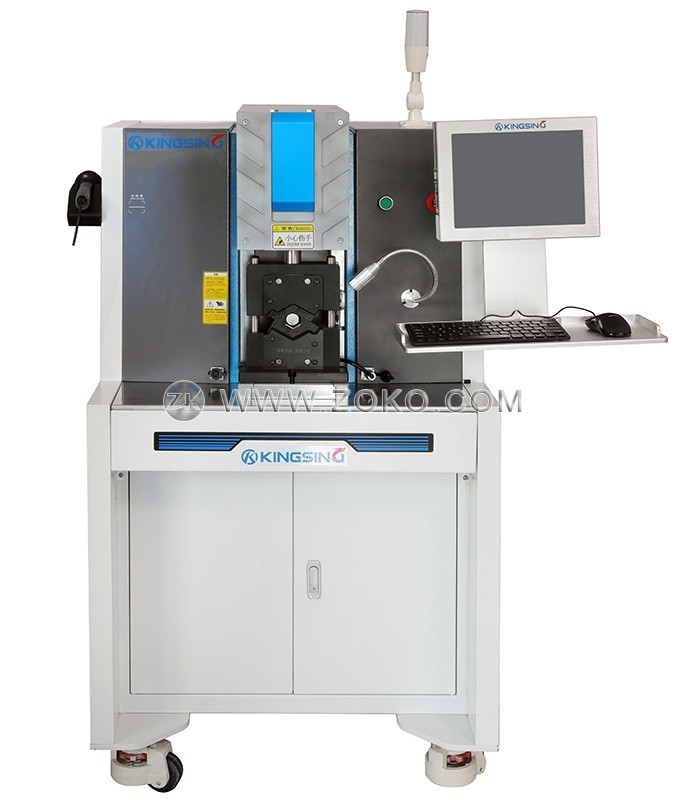

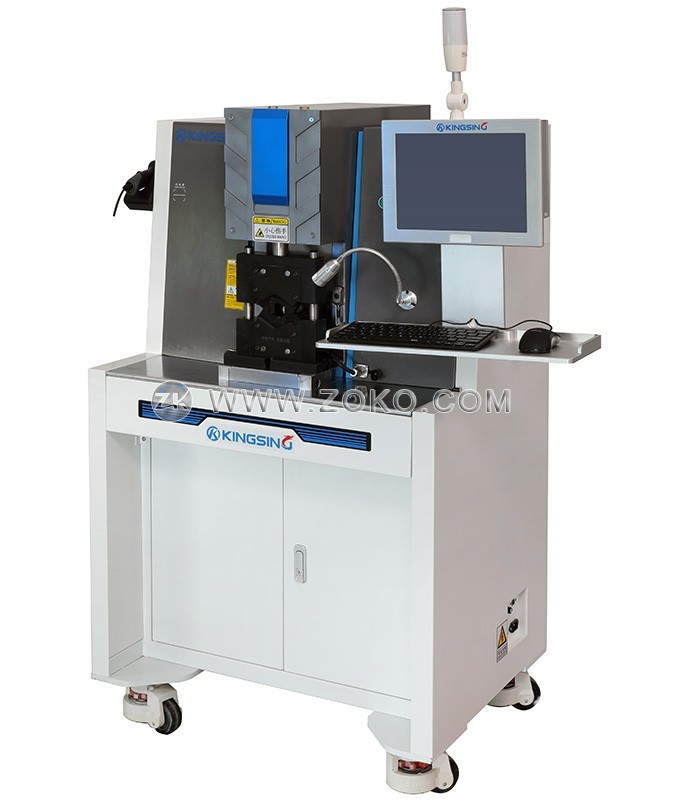

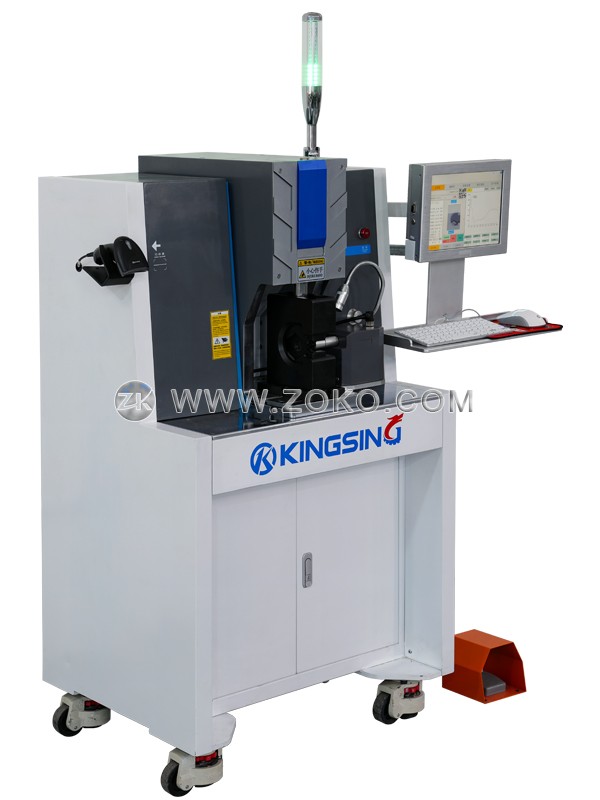

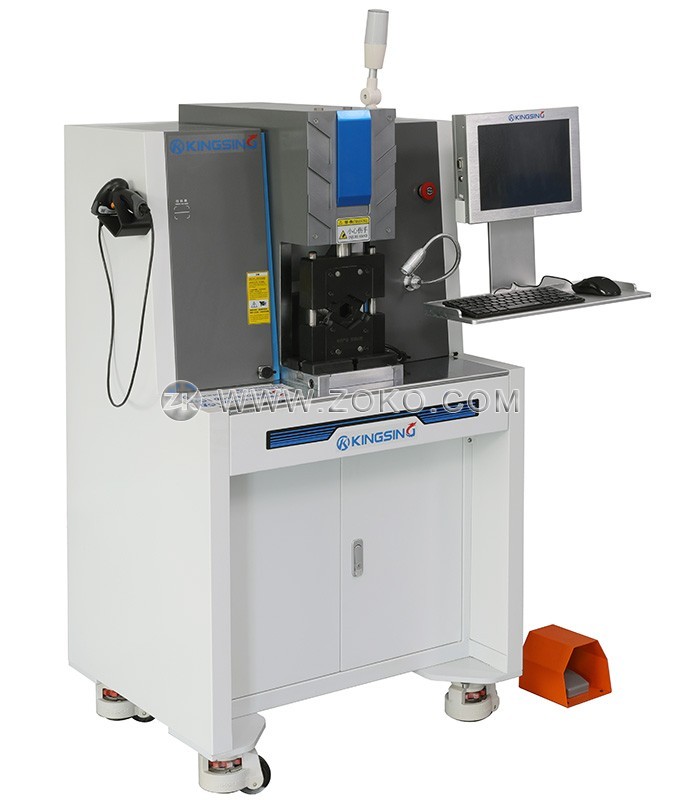

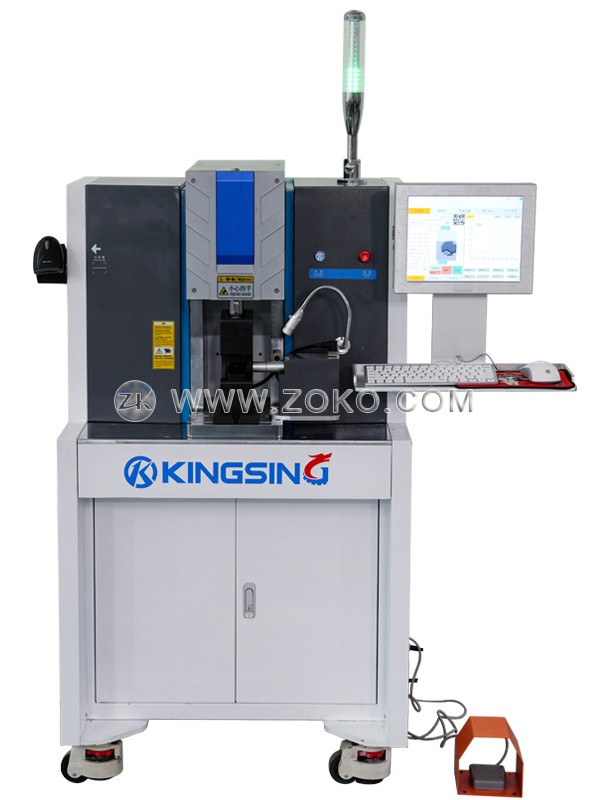

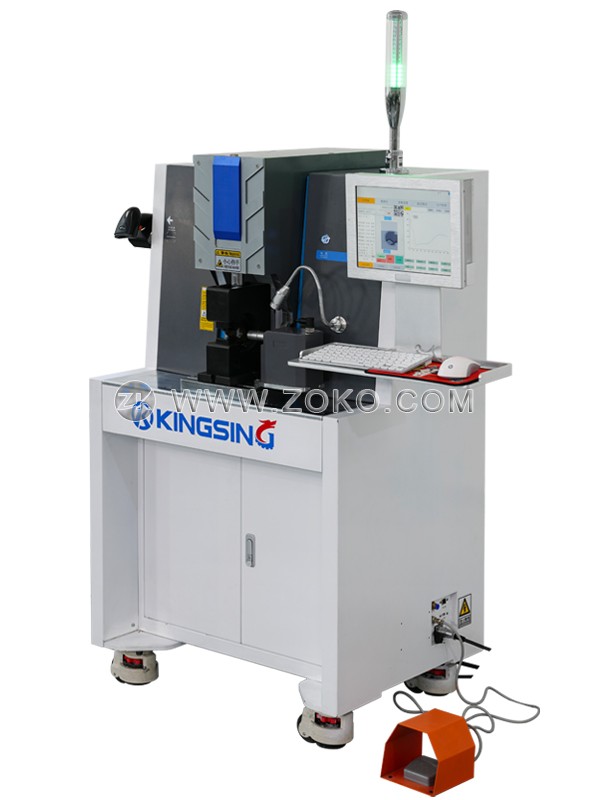

Servo Motor Driven Large Cable Crimping Machine With Crimp Force Monitor System

  • Model:KS-T519 series
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:
  1. This series is a servo-type large square crimping machine, with 6 sub-models in total (see technical parameters for details). Driven by a high-precision servo motor, the crimping height can be set in the program without manually adjusting the screws. The whole machine has precise workmanship, solid materials, strong rigidity, high crimping precision, low noise, low power consumption, and stable output.

  2. There are a variety of crimping applicators to choose from, such as hexagonal applicators, quadrilateral applicators, four-point crimping applicators, B-shaped crimping applicators, etc. The program memory function can save the crimping parameters of different products in the database. When changing the applicator or wire, the corresponding crimping parameters can be called out with one key, and the applicator supports quick replacement.

  3. The operating system has a touch screen version and a computer industrial control version to choose from. The computer industrial control version adopts Windows operating system, supports network connection, and can be connected with the MES system in the local area network. The built-in crimping force monitor can automatically alarm and stop when the crimping force is abnormal, and the crimping force data of each crimping is automatically saved in the database, which can realize quality traceability management. A code scanning gun is optional, and the corresponding crimping parameters are automatically called up after scanning the code. Supports three-level authority management, and can assign different operation authority to operators, technicians, and managers.

Download: (1) (2)
ModelKS-T5191KS-T5191CKS-T5192KS-T5192CKS-T5195KS-T5195C
Crimping Force15T30T50T
Crimp Stroke60mm75mm75mm
Applicable Wire Diameter6~120mm2
16~200mm2
16~300mm2
Control System7 inch touch screenIndustrial computer7 inch touch screenIndustrial computer7 inch touch screenIndustrial computer
Internet ConnectionNoSupportNoSupportNoSupport
Scanner GunoptionalSupportoptionalSupportoptionalSupport
Crimping Force MonitoringNoSupportNoSupportNoSupport
Motor Power
2KW4.5KW7.5KW
Power Supply220V 50/60Hz220V 50/60Hz380V 50/60Hz
Net Weight
320kg
550kg1200kg
Dimensions
770*610*1580mm820*610*1800mm1120*950*1800mm

Program memory function: up to 120 sets of data can be saved

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
